RoHS
RoHS compliant
RoHS compliantPackage /
Category Switches / Snap Action, Limit Switches
Description

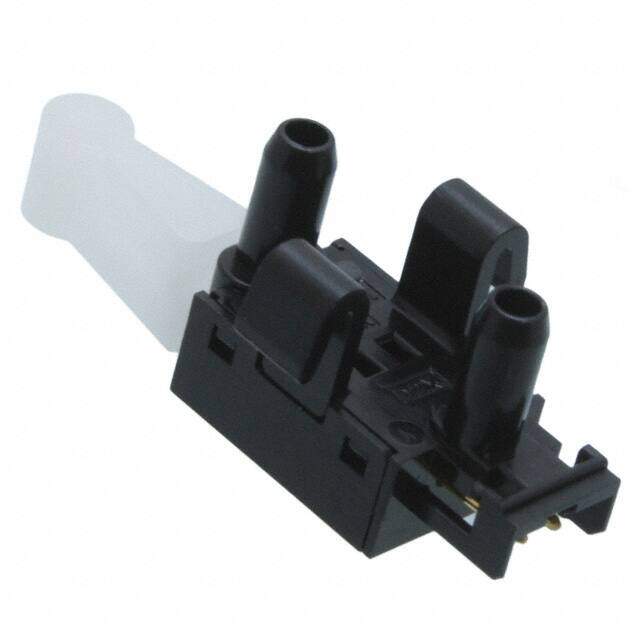

SWITCH DETECT SPST-NC 100MA 30V
PDF
/
Buying Options
Total Price: USD $2.5
Unit Price: USD $2.497136
≥1 USD $2.497136
≥200 USD $0.967607
≥500 USD $0.933472
≥1000 USD $0.916404
Inventory: 8762
Minimum: 1
-
+
Technical Details
Supply Chain
Factory Lead Time 10 Weeks
Physical
Mount Panel, Snap in
Mounting Type Panel Mount, Snap-In
Technical
Operating Temperature -10°C~70°C
Packaging Bulk
Series D2X
Pbfree Code yes
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
ECCN Code EAR99
HTS Code 8536.50.70.00
Voltage - Rated DC 30V
Current Rating (Amps) 100mA DC
Ingress Protection IP00
Current Rating 100mA
Termination Style Connector
Body Length or Diameter 8.4mm
Body Breadth 5.3 mm
Actuator Type Angled Toggle (Detector)
Circuit SPST-NC
Switch Function On-Mom
Contact Current(DC)-Max 0.1A
Electrical Life 50,000 Cycles
Throw Configuration SPST
Mechanical Life 1,000,000 Cycles
Switch Type SNAP ACTING/LIMIT SWITCH
Operating Force 50gf
Contact (DC) Max Rating R Load .1A@30VDC
Operating Position 5°
Release Force 2.039gf
Dimensions
Body Height 11.9mm
Compliance
RoHS Status RoHS Compliant
Lead Free Lead Free
