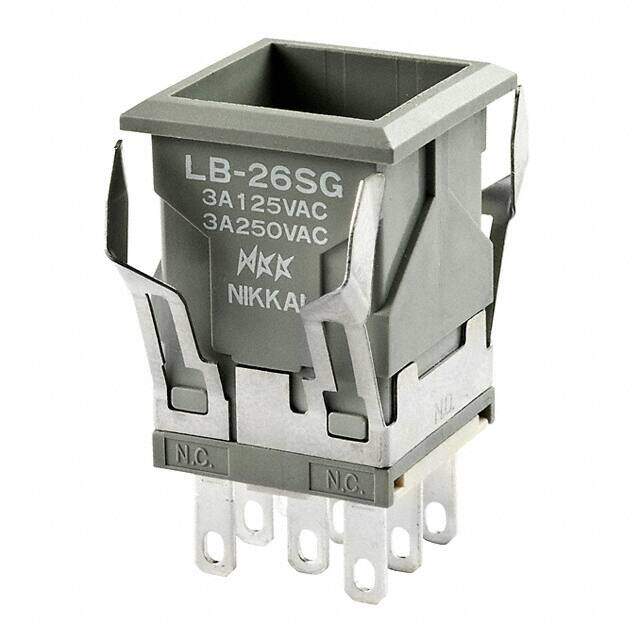

LB26SGW01
RoHS
RoHS compliant
RoHS compliantPackage /
Category Switches / Pushbutton Switches
Description
SWITCH PUSHBUTTON DPDT 3A 125V
PDF
/
Buying Options
Total Price: USD $12.5
Unit Price: USD $12.5048
≥1 USD $12.5048
≥10 USD $11.21032
≥100 USD $10.717344
≥500 USD $10.162944
≥1000 USD $9.793432
≥3000 USD $9.177485
Inventory: 29
Minimum: 1
-
+
Technical Details
Compliance
Flammability Rating UL94 V-0
RoHS Status ROHS3 Compliant
Dimensions
Actuator Length 0.197 inch
Length - Termination 0.295 inch
Body Height 21.4884mm
Technical
Solderability HAND
Actuator Travel 2.9972 mm
Contact Voltage(AC)-Max 250V
Contact (AC) Max Rating R Load 3A@250VAC
Contact Current(AC)-Max 3A
Mechanical Life 200,000 Cycles
Electrical Life 100,000 Cycles
Dielectric Withstanding Voltage 1500VAC V
Sealing EPOXY
Contact Current(DC)-Max 3A
Insulation Resistance 200000000Ohm
Contact Resistance 0.05mOhm
Panel Cutout Dimensions Square - 16.20mm2
Switch Function On-On
Circuit DPDT
Actuator Type Plunger for Cap
Body Breadth 15.7988 mm
Body Length or Diameter 15.7988mm
Voltage - Rated AC 125V
Termination Style Solder, Quick Connect - 0.110 (2.8mm)
Current Rating 3A
Current Rating (Amps) 3A AC/DC
Voltage - Rated DC 30V
Additional Feature Non Illuminated without Cap
Type Standard
Termination Solder
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
Pbfree Code yes
Series LB
Published 2011
Packaging Bulk
Operating Temperature -25°C~70°C
Physical
Terminal Material PHOSPHOR BRONZE
Housing Material Polyamide
Mounting Type Panel Mount, Snap-In
Mount Panel, Snap in
Contact Plating Silver
Supply Chain
Factory Lead Time 9 Weeks
Alternative Model
