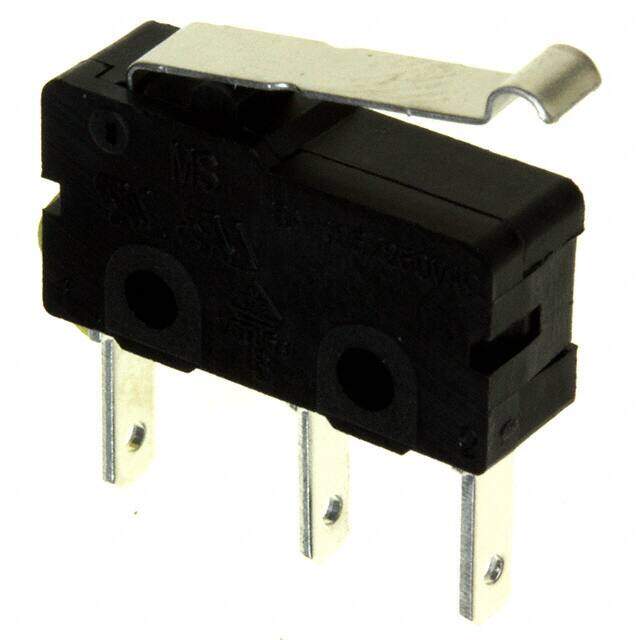

MS0850504F035C1A
RoHS
RoHS compliant
RoHS compliantPackage /
Category Switches / Snap Action, Limit Switches
Description
SWITCH SNAP ACTION SPDT 5A 125V
PDF
/
Buying Options
Total Price: USD $1.19
Unit Price: USD $1.193967
≥1 USD $1.193967
≥10 USD $1.126385
≥100 USD $1.062625
≥500 USD $1.002477
≥1000 USD $0.945739
Inventory: 1180
Minimum: 1
-
+
Technical Details
Supply Chain
Factory Lead Time 11 Weeks
Physical
Mount Chassis Mount
Mounting Type Chassis Mount
Actuator Material POLYBUTYLENE TEREPHTHALATE
Terminal Material COPPER ALLOY
Technical
Operating Temperature -25°C~85°C
Packaging Bulk
Published 2008
Series MS
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Termination Quick Connect
ECCN Code EAR99
Current Rating (Amps) 5A AC
Current Rating 5A
Termination Style Quick Connect - 0.110 (2.8mm)
Voltage - Rated AC 125V
Body Length or Diameter 19.812mm
Body Breadth 6.4008 mm
Actuator Type Lever, Simulated Roller
Circuit SPDT
Switch Function On-Mom
Contact Resistance 0.1mOhm
Insulation Resistance 100000000Ohm
Dielectric Withstanding Voltage 1000VAC V
Electrical Life 50,000 Cycles
Mechanical Life 1,000,000 Cycles
Switch Type SNAP ACTING/LIMIT SWITCH
Contact Current Rating 5A
Operating Force 35gf
Contact Current(AC)-Max 5A
Contact (AC) Max Rating R Load 5A@250VAC
Contact Timing SNAP ACTION
Pretravel 0.125 (3.2mm)
Operating Position 0.429 (10.9mm)
Release Force 20gf
Dimensions
Body Height 10.5918mm
Compliance
RoHS Status ROHS3 Compliant
Lead Free Lead Free
