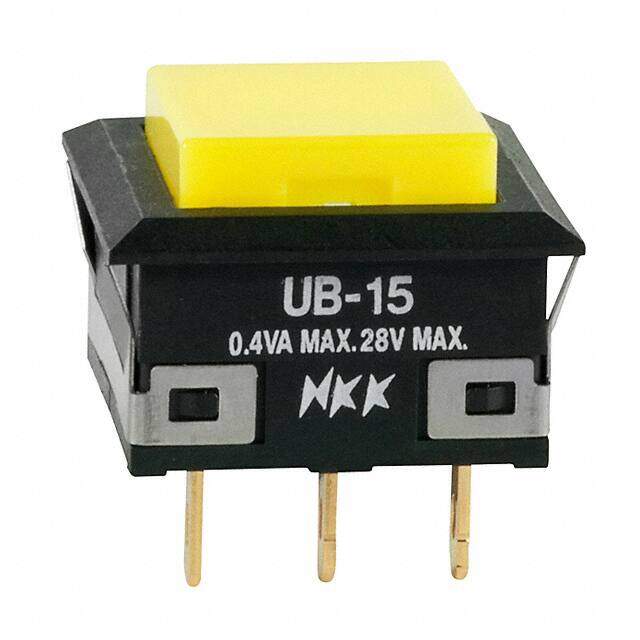

UB15KKG01N-E
RoHS
RoHS compliant
RoHS compliantPackage /
Category Switches / Pushbutton Switches
Description
SWITCH PUSH SPDT 0.4VA 28V
PDF
/
Buying Options
Total Price: USD $7.62
Unit Price: USD $7.6208
≥1 USD $7.6208
≥10 USD $6.8464
≥100 USD $6.529952
≥500 USD $6.2491
≥1000 USD $6.00336
≥3000 USD $5.68744
Inventory: 129
Minimum: 1
-
+
Technical Details
Compliance
Lead Free Lead Free
Flammability Rating UL94 V-0
RoHS Status ROHS3 Compliant
Dimensions
Body Height 17.5006mm
Length 17.8mm
Technical
Actuator Travel 2.3114 mm
Contact Function ON-(ON)
Illumination Type Illuminated
Mechanical Life 1,000,000 Cycles
Max Voltage Rating (DC) 28V
Throw Configuration DPDT, SPDT
Electrical Life 200,000 Cycles
Dielectric Withstanding Voltage 1500VAC V
Max Current Rating 100mA
Max Voltage Rating (AC) 28V
Color - Actuator/Cap Yellow
Insulation Resistance 200000000Ohm
Contact Resistance 0.1mOhm
Panel Cutout Dimensions Square - 16.20mm2
Switch Function On-Mom
Circuit SPDT
Actuator Type Square, Button
Body Breadth 15.7988 mm
Voltage - Rated AC 28V
Termination Style Solder Lug
Depth 17.8mm
Orientation Vertical
Current Rating (Amps) 0.4VA AC/DC
Voltage - Rated DC 28V
Power Rating 400mW
Type Standard
ECCN Code EAR99
Termination Solder
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
Pbfree Code yes
Feature Epoxy Sealed Terminals
JESD-609 Code e4
Series UB
Published 2002
Packaging Tray
Operating Temperature -20°C~70°C
Physical
Terminal Material PHOSPHOR BRONZE
Housing Material Polyamide
Mounting Type Panel Mount, Snap-In
Mount Panel, Snap in
Contact Plating Gold
Contact Material Copper
Supply Chain
Factory Lead Time 11 Weeks
