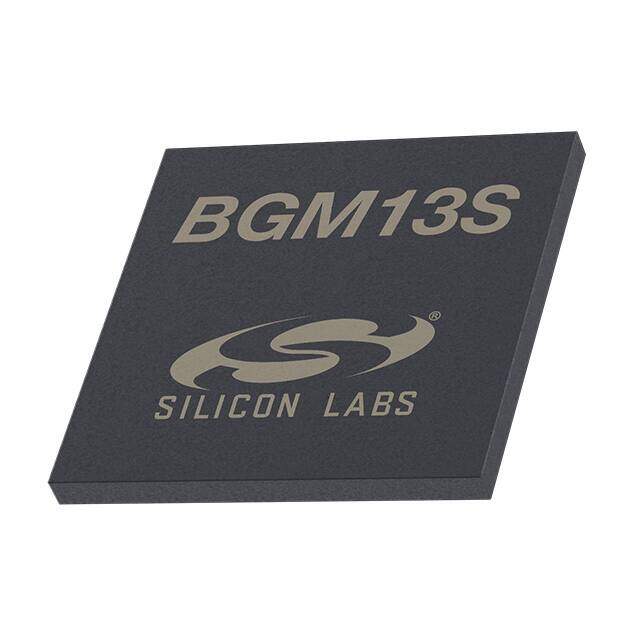

BGM13S22F512GN-V2
RoHS
RoHS compliant
RoHS compliantPackage Module
Category RF/IF and RFID / RF Transceiver Modules
Description
EFR32BG13 BLUETOOTH 5.0 SIP MODU
PDF
/
Buying Options
Total Price: USD $9.94
Unit Price: USD $9.93734
≥1 USD $9.93734
≥260 USD $3.966271
≥520 USD $3.833668
≥1040 USD $3.768023
Inventory: 1272
Minimum: 1
-
+
Technical Details
Compliance
RoHS Status RoHS Compliant
Technical
Modulation GFSK
Current - Transmitting 8.9mA
Current - Receiving 10.5mA
Serial Interfaces I2C, I2S, IrDA, SPI, UART
Sensitivity -90.2dBm
Antenna Type Antenna Not Included
RF Family/Standard Bluetooth
Power - Output 8dBm
Telecom IC Type TELECOM CIRCUIT
Protocol Bluetooth v5.0
Utilized IC / Part EFR32BG13
Data Rate 2Mbps
Memory Size 512kB Flash 64kB RAM
Frequency 2.4GHz
Voltage - Supply 1.8V~3.8V
Moisture Sensitivity Level (MSL) 3 (168 Hours)
Part Status Discontinued
Series Blue Gecko
Operating Temperature -40°C~85°C
Physical
Package / Case Module
Mounting Type Surface Mount
Supply Chain
Factory Lead Time 12 Weeks
