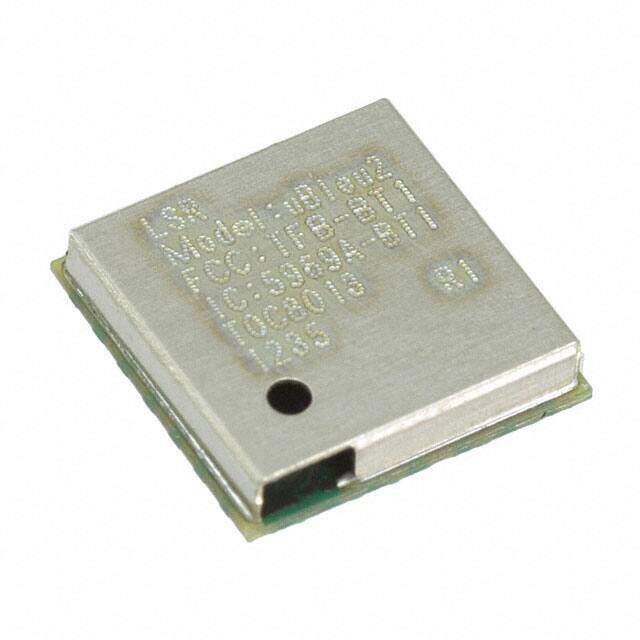

450-0104 image
Favorite
RoHS
RoHS RoHS compliant
Package Module
Category RF/IF and RFID / RF Transceiver Modules
Description RF TXRX MODULE BLUETOOTH
PDF
/
Buying Options
Total Price: USD $8.94
Unit Price: USD $8.943
≥1 USD $8.943
Inventory: 6332
Minimum: 1
-
+

Technical Details

Compliance

RoHS Status RoHS Compliant

Dimensions

Width 7mm
Length 7mm
Height Seated (Max) 1.5mm

Technical

Modulation DPSK, DQPSK, FHSS, GFSK
Current - Transmitting 38.5mA~39.2mA
Current - Receiving 44.5mA
Serial Interfaces UART
Sensitivity -94dBm
Antenna Type Antenna Not Included
RF Family/Standard Bluetooth
Power - Output 10dBm
Telecom IC Type TELECOM CIRCUIT
Protocol Bluetooth v4.0 Dual Mode
Utilized IC / Part CC2564
Data Rate 3.9Mbps
JESD-30 Code S-XXMA-N33
Frequency 2.4GHz
Reach Compliance Code unknown
Supply Voltage 3.3V
Number of Functions 1
Terminal Form NO LEAD
Terminal Position UNSPECIFIED
Voltage - Supply 2.2V~4.8V
Number of Terminations 33
Moisture Sensitivity Level (MSL) 4 (72 Hours)
Part Status Active
Series TiWi-uB2
Published 2012
Packaging Tray
Operating Temperature -30°C~85°C

Physical

Surface Mount YES
Package / Case Module
Mounting Type Surface Mount

Supply Chain

Factory Lead Time 11 Weeks
