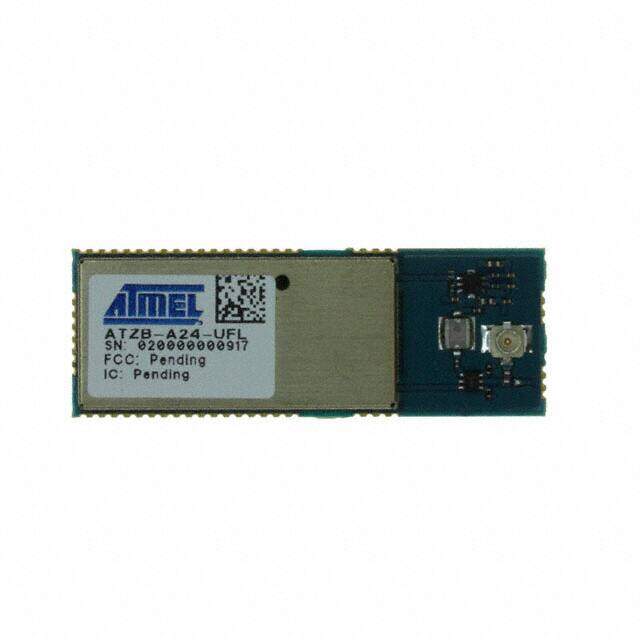

ATZB-A24-UFLR
RoHS
RoHS compliant
RoHS compliantPackage PCB Module
Category RF/IF and RFID / RF Transceiver Modules
Description
ATMEL ATZB-A24-UFLR ZIGBEE MODULE, 2.4GHZ, U.FL CONN
PDF
/
Buying Options
Total Price: USD $71.67
Unit Price: USD $71.6661
≥1 USD $71.6661
≥10 USD $58.8031
≥100 USD $56.9658
≥500 USD $55.12755
≥1000 USD $53.29025
Inventory: 3135
Minimum: 1
-
+
Technical Details
Compliance
Lead Free Lead Free
RoHS Status ROHS3 Compliant
REACH SVHC No SVHC
Radiation Hardening No
Dimensions
Width 13.5mm
Length 38mm
Height 2mm
Technical
Sensitivity (dBm) -104 dBm
Current - Transmitting 50mA
Current - Receiving 23mA
Serial Interfaces I2C, JTAG, SPI, UART, USART
Sensitivity -104dBm
Antenna Type Antenna Not Included, U.FL
RF Family/Standard 802.15.4
Power - Output 20dBm
Max Frequency 2.4835GHz
Protocol Zigbee?
Utilized IC / Part AT86RF230
Data Rate 250kbps
RAM Size 8kB
Memory Size 128kB Flash 4kB EEPROM 8kB RAM
Min Supply Voltage 3V
Max Supply Voltage 3.6V
Interface I2C, SPI, UART
Number of Channels 16
Frequency 2.4GHz
Voltage - Supply 3V~3.6V
Min Operating Temperature -40°C
Max Operating Temperature 85°C
Moisture Sensitivity Level (MSL) 3 (168 Hours)
Part Status Obsolete
Series ZigBit?
Published 2009
Packaging Tape & Reel (TR)
Operating Temperature -20°C~70°C
Physical
Number of Pins 57
Package / Case PCB Module
Mounting Type Surface Mount
Mount Surface Mount
