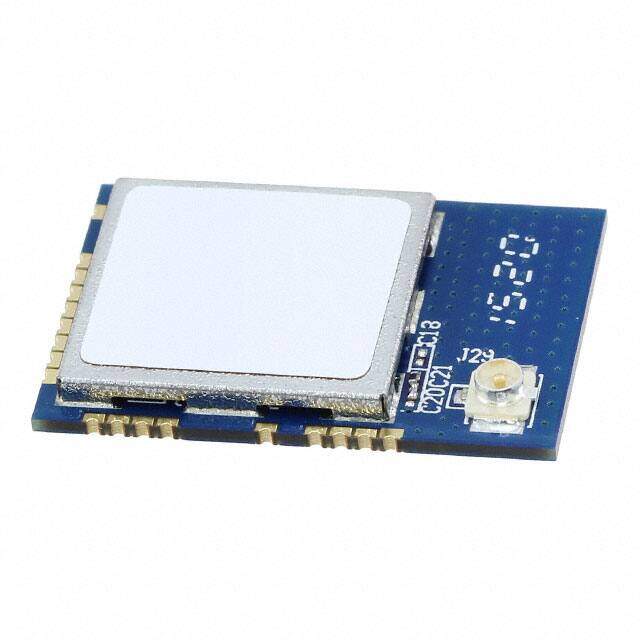

ATWINC1500-MR210UB
RoHS
RoHS compliant
RoHS compliantPackage Module
Category RF/IF and RFID / RF Transceiver Modules
Description
2.4 GHz 72.2 Mbps 8 Mb Flash Certified 802.11 b/g/n IoT Module w/PCB Antenna
PDF
/
Buying Options
Total Price: USD $17.97
Unit Price: USD $17.9721
≥1 USD $17.9721
≥10 USD $14.74685
≥100 USD $14.2861
≥500 USD $13.82535
≥1000 USD $13.3646
Inventory: 1028
Minimum: 1
-
+
Technical Details
Compliance
Lead Free Lead Free
RoHS Status ROHS3 Compliant
Technical
Firmware Version 19.4.4
Sensitivity (dBm) -98 dBm
Modulation 16-QAM, 64-QAM, BPSK, CCK, DBPSK, DQPSK, OFDM, QPSK
Current - Transmitting 132mA~294mA
Current - Receiving 52.5mA~70.1mA
Serial Interfaces I2C, SPI, UART
Antenna Type Antenna Not Included, U.FL
RF Family/Standard WiFi
Power - Output 19.5dBm
Protocol 802.11b/g/n
Data Rate 72.2Mbps
Memory Size 4MB Flash 128kB RAM
Interface I2C, SPI, UART
Number of Channels 1
Operating Supply Voltage 3.6V
Base Part Number ATWINC1500
Frequency 2.4GHz
Voltage - Supply 3V~4.2V
Moisture Sensitivity Level (MSL) 3 (168 Hours)
Part Status Active
Pbfree Code yes
Published 2015
Packaging Tray
Operating Temperature -40°C~85°C
Physical
Number of Pins 40
Package / Case Module
Mounting Type Surface Mount
Mount Surface Mount
Supply Chain
Factory Lead Time 12 Weeks
