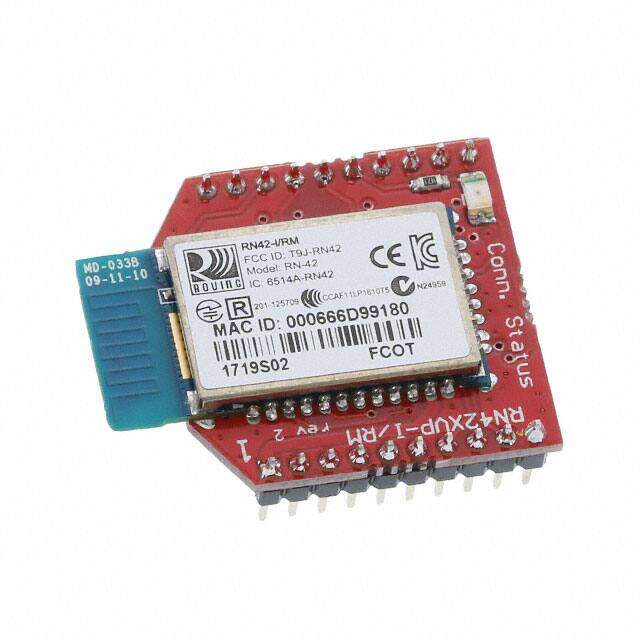

RN42XVP-I/RM
RoHS
RoHS compliant
RoHS compliantPackage 20-DIP Module
Category RF/IF and RFID / RF Transceiver Modules
Description
MICROCHIP RN42XVP-I/RM MODULE, BT / 802.15.1 XV CL2, PCB ANT
PDF
/
Buying Options
Total Price: USD $23.75
Unit Price: USD $23.7512
≥1 USD $23.7512
Inventory: 374
Minimum: 1
-
+
Technical Details
Compliance
Lead Free Lead Free
RoHS Status ROHS3 Compliant
REACH SVHC No SVHC
Dimensions
Width 29.9mm
Length 24.4mm
Height Seated (Max) 2mm
Technical
Firmware Version 6.3
Sensitivity (dBm) -80 dBm
Modulation FHSS, GFSK
Current - Transmitting 65mA
Current - Receiving 35mA
Serial Interfaces UART
Number of ADC Channels 10
Sensitivity -86dBm
Antenna Type Integrated, Trace
RF Family/Standard Bluetooth
Power - Output 4dBm
Telecom IC Type TELECOM CIRCUIT
Protocol Bluetooth v2.1 + EDR, Class 2
Bandwidth 78MHz
Data Rate 300kbps
Operating Supply Voltage 3.3V
Base Part Number RN42XV
Frequency 2.4GHz
Supply Voltage 3.3V
Number of Functions 1
Terminal Position DUAL
Voltage - Supply 3V~3.6V
HTS Code 8542.39.00.01
Number of Terminations 20
Moisture Sensitivity Level (MSL) 3 (168 Hours)
Part Status Active
Published 2009
Packaging Bulk
Operating Temperature -40°C~85°C
Physical
Number of Pins 20
Surface Mount NO
Package / Case 20-DIP Module
Mounting Type Through Hole
Supply Chain
Factory Lead Time 12 Weeks
