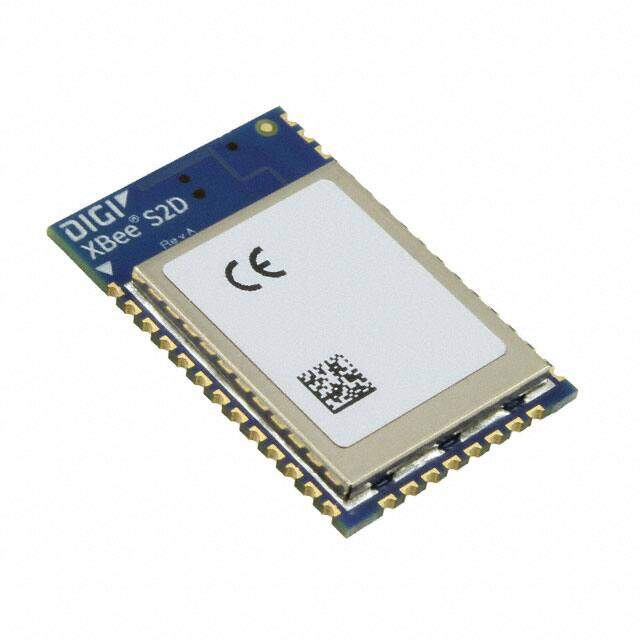

XB24DZ7PIS-004
RoHS
RoHS compliant
RoHS compliantPackage Module
Category RF/IF and RFID / RF Transceiver Modules
Description
RF TXRX MOD 802.15.4 TRACE ANT
PDF
/
Buying Options
Total Price: USD $62.9
Unit Price: USD $62.8971
≥1 USD $62.8971
≥216 USD $25.096084
≥504 USD $24.258453
≥1008 USD $23.843577
Inventory: 2438
Minimum: 1
-
+
Technical Details
Compliance
RoHS Status RoHS Compliant
Technical
Current - Transmitting 45mA
Current - Receiving 31mA
Serial Interfaces SPI, UART
Sensitivity -102dBm
Antenna Type Integrated, Trace
RF Family/Standard 802.15.4
Power - Output 8dBm
Telecom IC Type TELECOM CIRCUIT
Protocol Zigbee?
Utilized IC / Part EM3587
Data Rate 250kbps
JESD-30 Code R-XDMA-T20
Frequency 2.4GHz
Supply Voltage 3.3V
Number of Functions 1
Terminal Form THROUGH-HOLE
Terminal Position DUAL
Voltage - Supply 2.1V~3.6V
Number of Terminations 20
Moisture Sensitivity Level (MSL) 3 (168 Hours)
Part Status Not For New Designs
Pbfree Code yes
Series XBee? ZigBee?
Published 2014
Packaging Tray
Operating Temperature -40°C~85°C
Physical
Surface Mount NO
Package / Case Module
Mounting Type Surface Mount
Supply Chain
Factory Lead Time 2 Weeks
