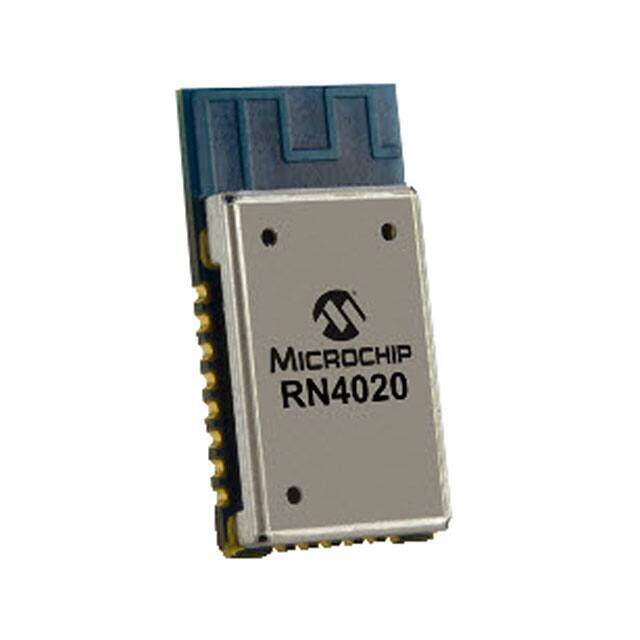

RN4020-V/RM123 image
Favorite
RN4020-V/RM123 image
Favorite

RN4020-V/RM123

Microchip Technology
RoHS
RoHS RoHS compliant
Package Module
Category RF/IF and RFID / RF Transceiver Modules
Description RF TXRX MOD BLUETOOTH TRACE ANT
PDF
/
Buying Options
Total Price: USD $10.22
Unit Price: USD $10.2168
≥1 USD $10.2168
≥10 USD $9.2752
≥100 USD $8.8
Inventory: 1266
Minimum: 1
-
+

Technical Details

Supply Chain

Factory Lead Time 12 Weeks

Physical

Mount Surface Mount
Mounting Type Surface Mount
Package / Case Module
Number of Pins 24

Technical

Operating Temperature -30°C~85°C
Packaging Tray
Published 2017
Pbfree Code yes
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Number of Terminations 24
Voltage - Supply 1.8V~3.6V
Terminal Position UNSPECIFIED
Terminal Form NO LEAD
Peak Reflow Temperature (Cel) NOT SPECIFIED
Number of Functions 1
Supply Voltage 3.3V
Frequency 2.4GHz
Time@Peak Reflow Temperature-Max (s) NOT SPECIFIED
Base Part Number RN4020
Interface UART
Memory Size 64kB Flash
Nominal Supply Current 12mA
Data Rate 1Mbps
Protocol Bluetooth v4.1
Telecom IC Type TELECOM CIRCUIT
Power - Output 7.5dBm
RF Family/Standard Bluetooth
Antenna Type Integrated, Trace
Number of ADC Channels 1
Serial Interfaces AIO, PIO, SPI, UART
Current - Receiving 16mA
Modulation GFSK
Sensitivity (dBm) -92.5 dBm
Number of GPIO 8
Firmware Version 1.23

Dimensions

Height 2.38mm

Compliance

RoHS Status ROHS3 Compliant
