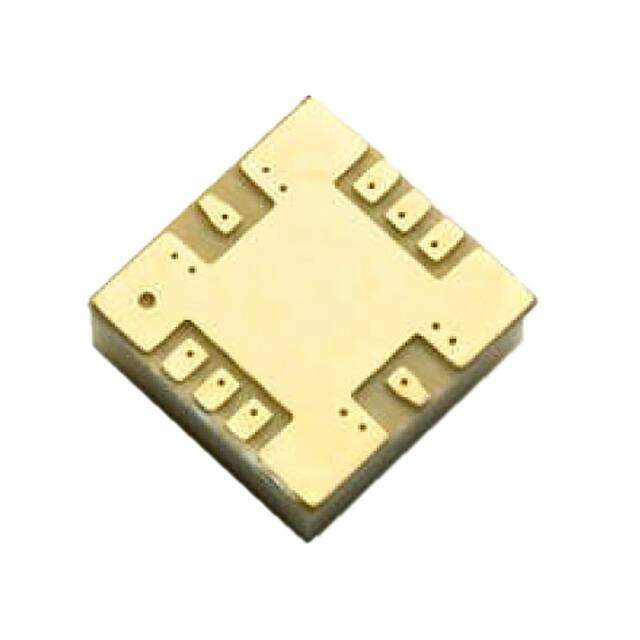

AMMP-5618-TR2
RoHS
/
Package 8-SMD, No Lead
Category RF/IF and RFID / RF Amplifiers
Description
IC AMP GP HI PWR 6-20GHZ 8-SMD
PDF
/
Inventory: 4103
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and
contact information to get a quote.
Quotation Consultation
Technical Details
Supply Chain
Factory Lead Time 14 Weeks
Physical
Contact Plating Gold
Mount Surface Mount
Mounting Type Surface Mount
Package / Case 8-SMD, No Lead
Number of Pins 8
Technical
Packaging Tape & Reel (TR)
Published 2006
JESD-609 Code e4
Part Status Obsolete
Moisture Sensitivity Level (MSL) 2A (4 Weeks)
Number of Terminations 8
ECCN Code EAR99
Subcategory RF/Microwave Amplifiers
Voltage - Supply 5V
Number of Functions 1
Construction COMPONENT
Frequency 6GHz~20GHz
Power Supplies 5V
Number of Channels 1
Operating Supply Current 140mA
Nominal Supply Current 140mA
Max Supply Current 150mA
Bandwidth 20 GHz
Gain 13dB
RF/Microwave Device Type WIDE BAND LOW POWER
RF Type ISM, MMDS, WLL, 802.16/WiMAX, DBS, VSAT
Input Power-Max (CW) 20dBm
Characteristic Impedance 50Ohm
Noise Figure 4.4dB
P1dB 19dBm
Dimensions
Length 5mm
Width 5mm
Thickness 1.9mm
Compliance
RoHS Status RoHS Compliant
Lead Free Lead Free
