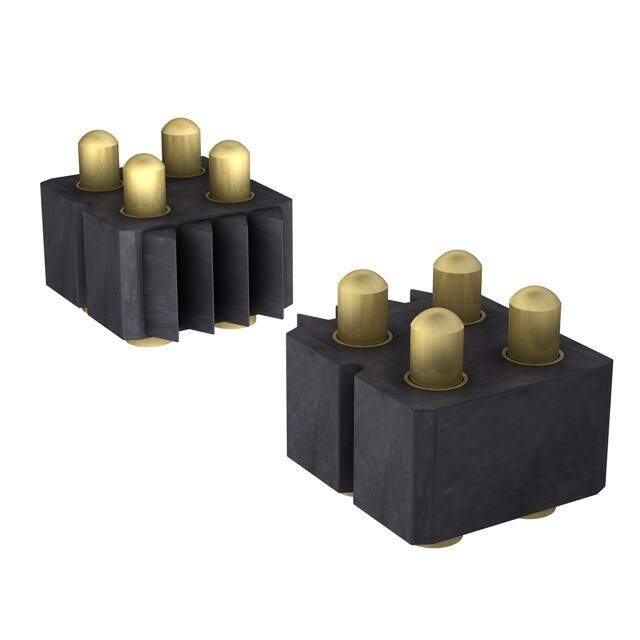

813-S1-052-10-014101
RoHS
RoHS compliant
RoHS compliantPackage /
Category Connectors, Interconnects / Rectangular Connectors - Spring Loaded
Description
813 ROHS3Compliant COMMERCIAL UL Spring Connector Piston 50000Cycles 10mOhm -55C 3.5A
PDF
/
Inventory: 965
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and
contact information to get a quote.
Quotation Consultation
Technical Details
Compliance
RoHS Status ROHS3 Compliant
Dimensions
Length - Termination 0.118 inch
Contact Finish Thickness 19.7μin 0.50μm
Technical
Contact Pattern RECTANGULAR
Durability 50000 Cycles
Dielectric Withstanding Voltage 1400VAC V
Termination Type SOLDER
Row Spacing 0.100 (2.54mm)
Insulation Resistance 10000000000Ohm
Contact Resistance 10mOhm
Contact Style RND PIN-SKT
Rated Current (Signal) 3.5A
Body Depth 0.157 inch
Operating Temperature (Min) -55°C
Contact Gender MALE
PCB Contact Pattern RECTANGULAR
Number of Contacts 52
Number Of PCB Rows 2
Reliability COMMERCIAL
Contact Finish Gold
Reference Standard UL
Number of Conductors ONE
Pitch 0.100 2.54mm
Subcategory Headers and Edge Type Connectors
Number of Rows 2
Connector Type Piston
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
Series 813
Published 2012
Packaging Bulk
Physical
Material Brass
Mounting Type Through Hole
Mount Surface Mount
Supply Chain
Factory Lead Time 10 Weeks
