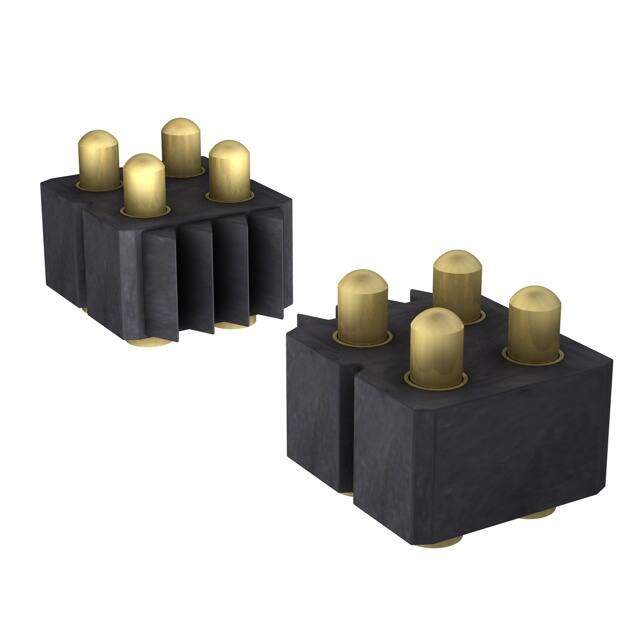

813-S1-008-30-016101
RoHS
RoHS compliant
RoHS compliantPackage /
Category Connectors, Interconnects / Rectangular Connectors - Spring Loaded
Description
PCB CONN SOLDER TAIL ST 2.54MM
PDF
/
Buying Options
Total Price: USD $4.69
Unit Price: USD $4.689623
≥1 USD $4.689623
≥10 USD $4.424178
≥100 USD $4.173746
≥500 USD $3.937503
≥1000 USD $3.714627
Inventory: 4535
Minimum: 1
-
+
Technical Details
Compliance
RoHS Status ROHS3 Compliant
Dimensions
Contact Finish Thickness 19.7μin 0.50μm
Technical
Contact Pattern RECTANGULAR
Durability 50000 Cycles
Polarization Key POLARIZED HOUSING
Row Spacing 0.100 (2.54mm)
Insulation Resistance 10000000000Ohm
Contact Resistance 10mOhm
Rated Current (Signal) 3.5A
Body Depth 0.173 inch
Operating Temperature (Min) -55°C
Contact Gender MALE
PCB Contact Pattern RECTANGULAR
Number of Contacts 8
Number Of PCB Rows 2
Body Length or Diameter 0.4 inch
Reliability COMMERCIAL
Contact Finish Gold
Reference Standard UL
Number of Conductors ONE
Pitch 0.100 2.54mm
Subcategory Headers and Edge Type Connectors
Number of Rows 2
Connector Type Piston
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
Series 813
Published 2012
Packaging Bulk
Physical
Material Brass
Mounting Type Surface Mount
Mount Surface Mount
Supply Chain
Factory Lead Time 10 Weeks
