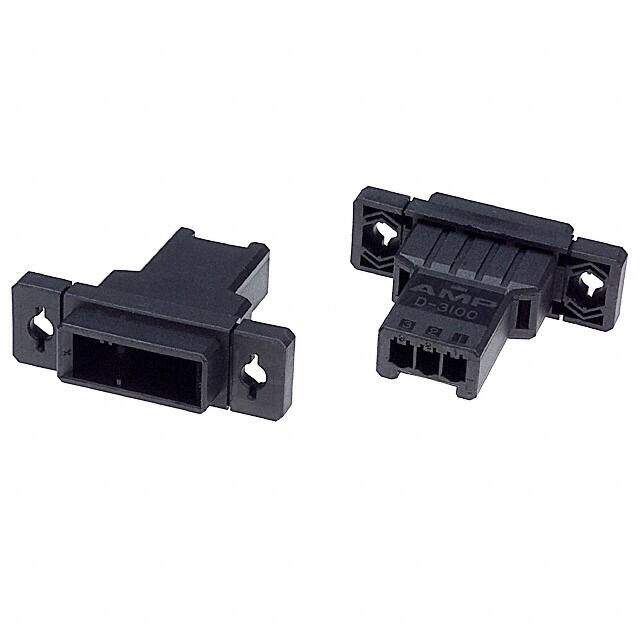

1-178802-3 image
Favorite
1-178802-3 image
Favorite
RoHS
RoHS RoHS compliant
Package /
Category Connectors, Interconnects / Rectangular Connectors - Housings
Description CONN HOUSING TAB 3POS KEY-X PNL
PDF
/
Buying Options
Total Price: USD $0.72
Unit Price: USD $0.7216
≥1 USD $0.7216
≥10 USD $0.67672
≥100 USD $0.6512
≥500 USD $0.64504
≥1000 USD $0.582032
≥3000 USD $0.563165
Inventory: 6089
Minimum: 1
-
+

Technical Details

Compliance

Lead Free Lead Free
Flammability Rating UL94 V-0
RoHS Status RoHS Compliant
REACH SVHC Unknown
Radiation Hardening No

Dimensions

Width 12.6746mm
Length 40mm
Height 33.6mm

Technical

VDE Tested No
Preloaded No
Halogen Free Halogen Free
Contact Termination Crimp
Sealable No
Wire/Cable Gauge 16 AWG
Max Voltage Rating (AC) 250V
ELV Compliant
Note Contacts Not Included
Operating Supply Voltage 250V
Housing Color Black
Number of Contacts 3
Approval Agency UL
Voltage - Rated AC 250V
Current Rating 15A
Depth 33.6mm
Orientation Straight
Pitch 0.150 3.81mm
Contact Type Male Pin
Gender Receptacle
Number of Rows 1
Color Black
Min Operating Temperature -67°C
Max Operating Temperature 221°C
Number of Positions 3
Connector Type Plug
Termination Crimp
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
Feature Polarizing Key
Series Dynamic D-3100
Published 2004
Packaging Bulk

Physical

Body Material Glass, PET, Polyester
Housing Material Polyester
Mounting Type Panel Mount
Mount Cable, Panel

Supply Chain

Lifecycle Status ACTIVE (Last Updated: 4 months ago)
Factory Lead Time 30 Weeks
