MX19004S52
RoHS
RoHS compliant
RoHS compliantPackage /
Category Connectors, Interconnects / Rectangular Connectors - Housings
Description

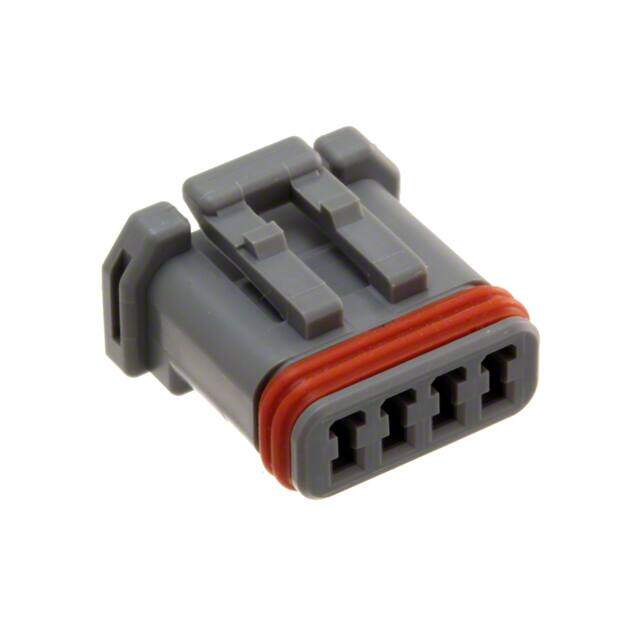

Automotive Connectors 4P Socket Housing Gray
PDF
/
Buying Options
Total Price: USD $2.69
Unit Price: USD $2.6928
≥1 USD $2.6928
≥10 USD $2.44112
≥100 USD $2.312288
≥500 USD $2.258432
≥1000 USD $2.150896
≥3000 USD $1.882038
Inventory: 1518
Minimum: 1
-
+
Technical Details
Supply Chain
Factory Lead Time 12 Weeks
Physical
Mount Free Hanging
Mounting Type Free Hanging (In-Line)
Material PBT, Polybutylene
Housing Material PBT
Technical
Packaging Bulk
Published 2002
Series MX19
Feature Waterproof
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Connector Type Receptacle
Number of Positions 4
Max Operating Temperature 105°C
Min Operating Temperature -40°C
Color Gray
Number of Rows 1
Gender Female
Fastening Type Latch Lock
Contact Type Female Socket
Pitch 0.098 2.50mm
Current Rating 5A
Insulation Resistance 100MOhm
Note Contacts Not Included
Wire Gauge (Max) 20 AWG
Wire Gauge (Min) 22 AWG
Contact Termination Crimp
Wire/Cable Diameter 1.7 mm
Compliance
RoHS Status RoHS Compliant
