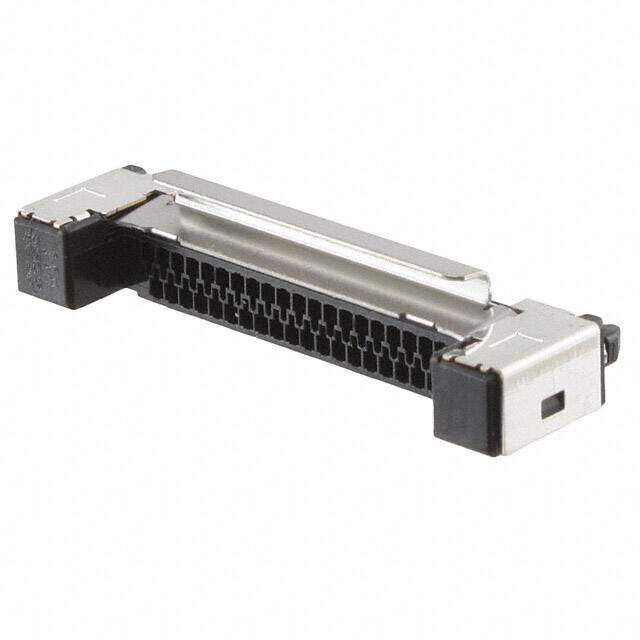

FI-RE41HLS-M
RoHS
/
Package /
Category Connectors, Interconnects / Rectangular Connectors - Housings
Description
CONN HSNG 0.5MM HIGH SPEED 41POS
PDF
/
Inventory: 5608
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and
contact information to get a quote.
Quotation Consultation
Technical Details
Compliance
Flammability Rating UL94 V-0
RoHS Status RoHS Compliant
Technical
Contact Termination Crimp
Note Contacts Not Included
Insulation Resistance 100MOhm
Current Rating 700mA
Pitch 0.020 0.50mm
Contact Type Blade Pin
Fastening Type Latch Lock
Gender Male
Number of Rows 1
Min Operating Temperature -40°C
Max Operating Temperature 85°C
Number of Positions 41
Connector Type Plug
Termination Crimp
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Obsolete
Series FI-R
Published 2009
Packaging Bulk
Physical
Housing Material Plastic
Mounting Type Free Hanging (In-Line)
Mount Free Hanging
Contact Plating Gold
Supply Chain
Factory Lead Time 12 Weeks
