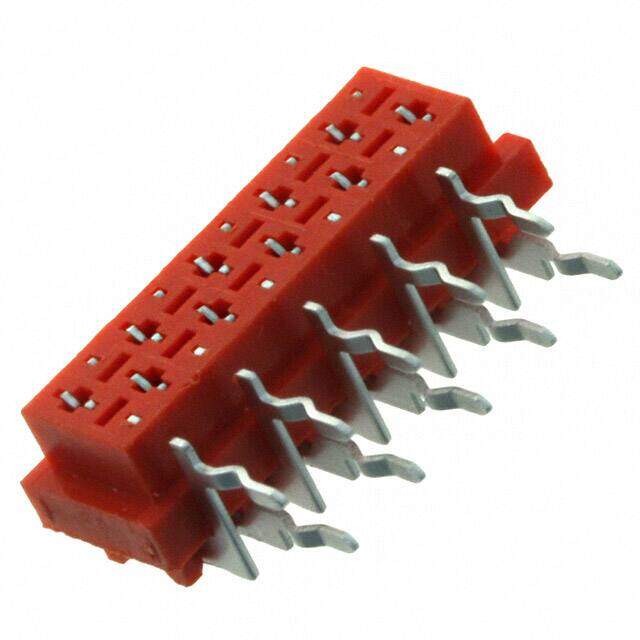

690368171072
RoHS
RoHS compliant
RoHS compliantPackage /
Category Connectors, Interconnects / Rectangular Connectors - Headers, Receptacles, Female Sockets
Description
CONN RCPT 10POS 0.1 TIN PCB R/A
PDF
/
Inventory: 1877
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and
contact information to get a quote.
Quotation Consultation
Technical Details
Supply Chain
Factory Lead Time 14 Weeks
Physical
Contact Material Phosphor Bronze
Contact Plating Tin
Mount Through Hole
Mounting Type Through Hole, Right Angle
Number of Pins 10
Contact Shape Rectangular
Insulation Material Polybutylene Terephthalate (PBT)
Housing Material PBT
Technical
Operating Temperature -40°C~105°C
Packaging Tube
Series WR-MM
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Termination Solder
Connector Type Receptacle
Number of Positions 10
Max Operating Temperature 105°C
Min Operating Temperature -40°C
Color Red
Number of Rows 2
Gender Female
Voltage - Rated 100VAC
Fastening Type Push-Pull
Contact Finish - Mating Tin
Contact Type Forked
Current Rating (Amps) 1.5A per Contact
Pitch 2.54mm
Orientation Straight
Insulation Height 0.197 5.00mm
Style Board to Board or Cable
Number of Positions Loaded All
Current Rating 1.5A
Pitch - Mating 0.100 2.54mm
Insulation Color Red
Row Spacing - Mating 0.059 (1.50mm)
Contact Length - Post 0.122 3.10mm
Lead Pitch 2.54mm
Number of Contacts 10
Contact Finish - Post Tin
Contact Gender Female
Operating Supply Voltage 100V
Contact Resistance 10mOhm
Insulation Resistance 1GOhm
Insulation Insulated
Dimensions
Height 5.8mm
Length 14.7mm
Compliance
Material Flammability Rating UL94 V-0
REACH SVHC No SVHC
RoHS Status ROHS3 Compliant
Flammability Rating UL94 V-0
