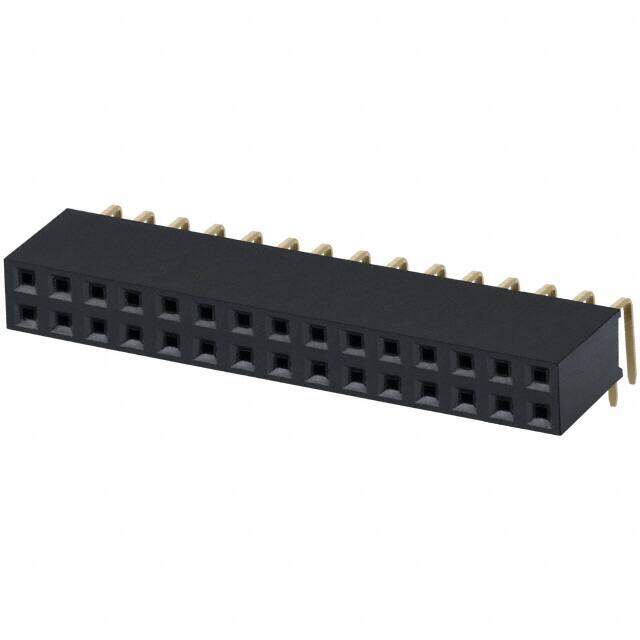

PPPC152LJBN-RC image
Favorite
PPPC152LJBN-RC image
Favorite
RoHS
RoHS RoHS compliant
Package /
Category Connectors, Interconnects / Rectangular Connectors - Headers, Receptacles, Female Sockets
Description CONN HDR 30POS 0.1 GOLD PCB R/A
PDF
/
Buying Options
Total Price: USD $1.54
Unit Price: USD $1.54
≥1 USD $1.54
≥10 USD $1.34376
≥100 USD $1.20054
≥500 USD $1.0065
Inventory: 10965
Minimum: 1
-
+

Technical Details

Compliance

Lead Free Lead Free
RoHS Status ROHS3 Compliant
Material Flammability Rating UL94 V-0

Dimensions

Contact Finish Thickness - Mating Flash
Width 8.5mm
Length 38.6mm
Height 5mm

Technical

Polarization Key POLARIZED HOUSING
Mating Contact Pitch 0.1 inch
Housing Color Black
Body Breadth 0.197 inch
PCB Contact Pattern RECTANGULAR
Number Of PCB Rows 2
Contact Length - Post 0.124 3.15mm
Row Spacing - Mating 0.100 (2.54mm)
Reliability COMMERCIAL
Reference Standard UL
Number of Conductors ONE
Pitch - Mating 0.100 2.54mm
Number of Positions Loaded All
Style Board to Board
Insulation Height 0.200 5.08mm
Current Rating (Amps) 3A
Contact Type Female Socket
Contact Finish - Mating Gold
Fastening Type Push-Pull
HTS Code 8536.69.40.40
Voltage - Rated 250V
Number of Rows 2
Number of Positions 30
Connector Type Header
ECCN Code EAR99
Termination Solder
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
Published 2006
Packaging Tray
Operating Temperature -40°C~105°C

Physical

Housing Material Plastic
Insulation Material Polyester
Contact Shape Square
Mounting Type Through Hole, Right Angle
Mount Through Hole
Contact Material Phosphor Bronze

Supply Chain

Factory Lead Time 5 Weeks
