ESW-124-24-T-D
RoHS
RoHS compliant
RoHS compliantPackage /
Category Connectors, Interconnects / Rectangular Connectors - Headers, Receptacles, Female Sockets
Description
Conn Elevated Socket SKT 48 POS 2.54mm Solder ST Thru-Hole Tube
PDF
/
Inventory: 9993
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and
contact information to get a quote.
Quotation Consultation
Technical Details
Technical
Subcategory Headers and Edge Type Connectors
Contact Finish - Mating Tin
MIL Conformance NO
DIN Conformance NO
IEC Conformance NO
Filter Feature NO
Contact Type Forked
Mixed Contacts NO
Option GENERAL PURPOSE
Current Rating (Amps) 5.2A per Contact
Insulation Height 0.535 13.60mm
Style Board to Board
Number of Positions Loaded All
Pitch - Mating 0.100 2.54mm
Insulation Color Black
Number of Conductors ONE
Reference Standard UL, CSA
Reliability COMMERCIAL
Row Spacing - Mating 0.100 (2.54mm)
Contact Length - Post 0.380 9.65mm
Number Of PCB Rows 2
PCB Contact Pattern RECTANGULAR
Body Breadth 0.195 inch
Body Depth 0.535 inch
Contact Resistance 10mOhm
Mating Contact Pitch 0.1 inch
Polarization Key POLARIZED HOUSING
Fastening Type Push-Pull
HTS Code 8536.69.40.40
Additional Feature TIGER BUY CONTACT
Voltage - Rated 550VAC
Gender Receptacle
Number of Rows 2
Number of Positions 48
Connector Type Elevated Socket
ECCN Code EAR99
Termination Solder
Moisture Sensitivity Level (MSL) Not Applicable
Part Status Active
Pbfree Code yes
JESD-609 Code e3
Series ESW
Packaging Tube
Operating Temperature -55°C~105°C
Dimensions
Length - Termination 0.38 inch
Compliance
Material Flammability Rating UL94 V-0
RoHS Status ROHS3 Compliant
Physical
Insulation Material Liquid Crystal Polymer (LCP)
Contact Shape Square
Mounting Type Through Hole
Mount Through Hole
Contact Material Phosphor Bronze
Supply Chain
Factory Lead Time 3 Weeks

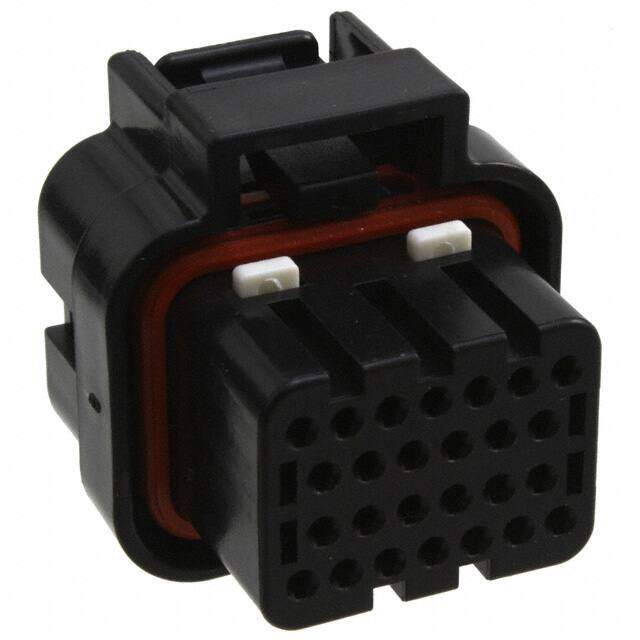

Alternative Model
