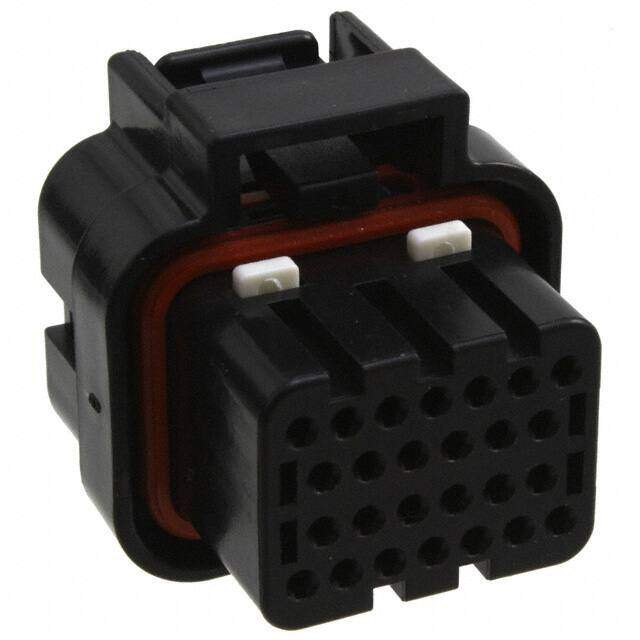

1473416-1
RoHS
RoHS compliant
RoHS compliantPackage /
Category Connectors, Interconnects / Rectangular Connectors - Housings
Description
Conn Housing PL 26 POS 3mm Crimp ST Cable Mount
PDF
/
Buying Options
Total Price: USD $4.75
Unit Price: USD $4.746134
≥1 USD $4.746134
≥10 USD $4.214409
≥40 USD $3.708943
Inventory: 7
Minimum: 1
-
+
Technical Details
Supply Chain
Factory Lead Time 9 Weeks
Lifecycle Status ACTIVE (Last Updated: 6 days ago)
Physical
Mount Cable, Free Hanging
Mounting Type Free Hanging (In-Line)
Material Plastic
Housing Material Thermoplastic
Body Material PBT
Technical
Packaging Tube
Published 2007
Series Superseal
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Termination Crimp
Connector Type Plug
Number of Positions 26
Max Operating Temperature 125°C
Min Operating Temperature -40°C
Color Black
Number of Rows 4
Gender Male
Fastening Type Latch Lock
Contact Type Female Socket
Pitch 2.9972mm
Orientation Straight
Depth 32.15mm
Number of Contacts 26
Housing Color Black
Operating Supply Voltage 250V
Row Spacing 4.2418 mm
Note Contacts Not Included
ELV Compliant
Contact Termination Crimp
Hybrid Connector No
Polarized Yes
Serviceable Yes
Dimensions
Height 34.55mm
Length 32.15mm
Width 32.2072mm
Compliance
Radiation Hardening No
REACH SVHC No SVHC
RoHS Status RoHS Compliant
Flammability Rating UL94 V-2
Lead Free Not Applicable
