CLP-104-02-FM-D-BE
RoHS
RoHS compliant
RoHS compliantPackage /
Category Connectors, Interconnects / Rectangular Connectors - Headers, Receptacles, Female Sockets
Description

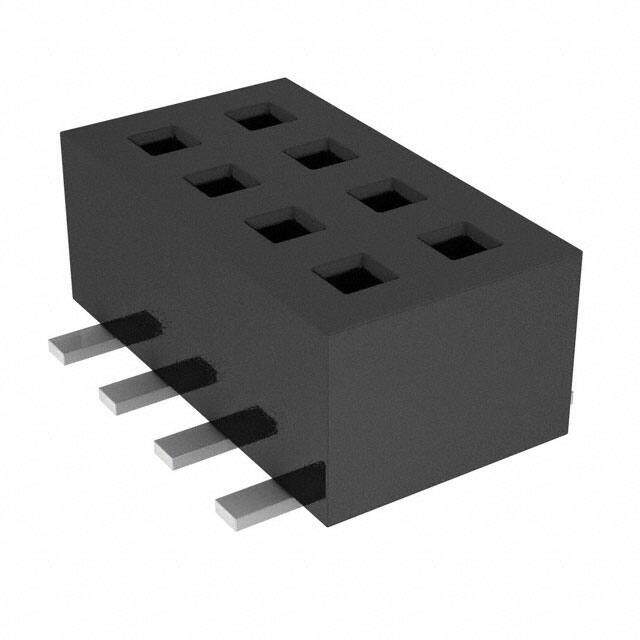

Conn Socket Strip SKT 8 POS 1.27mm Solder ST SMD
PDF
/
Inventory: 5035
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and
contact information to get a quote.
Quotation Consultation
Technical Details
Compliance
RoHS Status ROHS3 Compliant
Material Flammability Rating UL94 V-0
Dimensions
Contact Finish Thickness - Mating 3.00μin 0.076μm
Plating Thickness FLASH inch
Technical
Withdrawl Force-Min .556 N
Insertion Force-Max 1.0564 N
Mating Contact Pitch 0.05 inch
Contact Resistance 10mOhm
Body Depth 0.09 inch
UL Flammability Code 94V-0
PCB Contact Pattern RECTANGULAR
Contact Finish - Post Tin
Number Of PCB Rows 2
Row Spacing - Mating 0.050 (1.27mm)
Body Length or Diameter 0.517 inch
Reliability COMMERCIAL
Reference Standard UL
Number of Conductors ONE
Insulation Color Black
Pitch - Mating 0.050 1.27mm
Number of Positions Loaded All
Style Board to Board
Insulation Height 0.084 2.14mm
Total Number of Contacts 8
Current Rating (Amps) 3.3A per Contact
Option GENERAL PURPOSE
Mixed Contacts NO
Contact Type Female Socket
Filter Feature NO
IEC Conformance NO
DIN Conformance NO
MIL Conformance NO
Contact Finish - Mating Gold
Subcategory Headers and Edge Type Connectors
Fastening Type Push-Pull
Additional Feature BOTTOM ENTRY, LOW PROFILE
Voltage - Rated 240VAC 330VDC
Gender Female
Number of Rows 2
Number of Positions 8
Connector Type Receptacle, Bottom Entry
Termination Solder
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
JESD-609 Code e3
Series CLP
Packaging Bulk
Operating Temperature -55°C~125°C
Physical
Insulation Material Liquid Crystal Polymer (LCP)
Contact Shape Square
Mounting Type Surface Mount
Contact Material Phosphor Bronze
Supply Chain
Factory Lead Time 3 Weeks
Alternative Model
