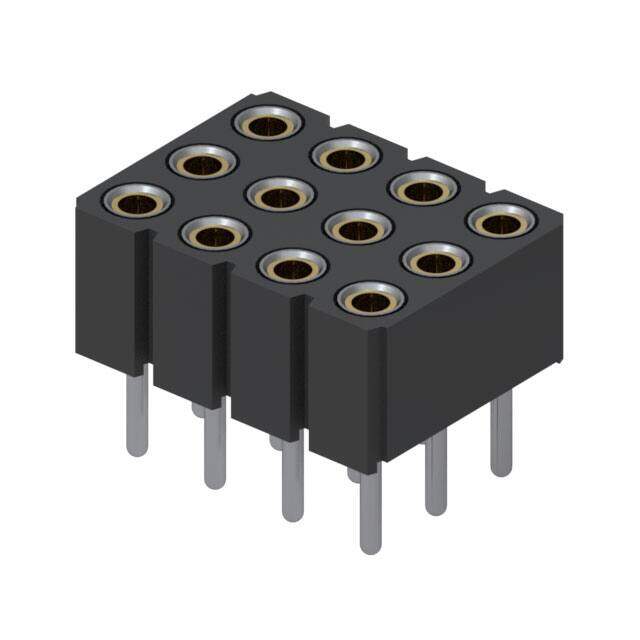

805-43-012-10-012000
RoHS
RoHS compliant
RoHS compliantPackage /
Category Connectors, Interconnects / Rectangular Connectors - Headers, Receptacles, Female Sockets
Description
CONN SOCKET 12POS .100 3ROW T/H
PDF
/
Buying Options
Total Price: USD $3.23
Unit Price: USD $3.2296
≥1 USD $3.2296
≥10 USD $2.93392
≥100 USD $2.585
≥500 USD $2.197237
≥1000 USD $1.874118
≥3000 USD $1.680237
Inventory: 77
Minimum: 1
-
+
Technical Details
Physical
Contact Material Beryllium Copper
Mount Through Hole
Mounting Type Through Hole
Contact Shape Circular
Insulation Material Polycyclohexylenedimethylene Terephthalate (PCT), Polyester
Technical
Operating Temperature -55°C~125°C
Packaging Bulk
Series 805
JESD-609 Code e4
Pbfree Code yes
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Termination Solder
Connector Type Receptacle
Number of Positions 12
Number of Rows 3
Fastening Type Push-Pull
Contact Finish - Mating Gold
MIL Conformance NO
DIN Conformance NO
IEC Conformance NO
Filter Feature NO
Contact Type Female Socket
Mixed Contacts NO
Option GENERAL PURPOSE
Current Rating (Amps) 4.5A
Terminal Pitch 2.54mm
Insulation Height 0.165 4.20mm
Style Board to Board
Number of Positions Loaded All
Pitch - Mating 0.100 2.54mm
Insulation Color Black
Row Spacing - Mating 0.100 (2.54mm)
Contact Length - Post 0.125 3.18mm
Contact Finish - Post Tin
Dimensions
Contact Finish Thickness - Mating 30.0μin 0.76μm
Contact Finish Thickness - Post 200.0μin 5.08μm
Compliance
Material Flammability Rating UL94 V-0
RoHS Status ROHS3 Compliant
