M80-4T15005FC

Harwin Inc.
RoHS
RoHS RoHS compliant
Package /
Category Connectors, Interconnects / Rectangular Connectors - Headers, Receptacles, Female Sockets
Description Rectangular Connector Female Socket
PDF
/
Inventory: 9863
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and contact information to get a quote.
Quotation Consultation
Is there anything else we can help you solve?
Inquiry

Technical Details

Compliance

RoHS Status ROHS3 Compliant
Material Flammability Rating UL94 V-0

Dimensions

Stack Height (Mating) 7.3mm 7.55mm
Length - Termination 0.118 inch
Contact Finish Thickness - Post 10.0μin 0.25μm
Contact Finish Thickness - Mating 12.0μin 0.30μm
Plating Thickness 11μin

Technical

Mating Contact Pitch 0.079 inch
Insulation Resistance 100000000Ohm
PCB Contact Pattern RECTANGULAR
Number Of PCB Rows 2
Contact Length - Post 0.118 3.00mm
Row Spacing - Mating 0.079 (2.00mm)
Reliability COMMERCIAL
Reference Standard UL
Number of Conductors ONE
Insulation Color Black
Pitch - Mating 0.079 2.00mm
Number of Positions Loaded All
Style Board to Board or Cable
Insulation Height 0.205 5.20mm
Current Rating (Amps) 2.2A
Contact Type Female Socket
Contact Finish - Mating Gold
Subcategory Headers and Edge Type Connectors
Fastening Type Screw Lock
Voltage - Rated 800V
Number of Rows 2
Applications Automotive, General Purpose, Military
Number of Positions 50
Connector Type Receptacle
Termination Solder
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Obsolete
Pbfree Code yes
Feature Jackscrews, Mating Flange, Mounting Flange, Polarizing Key
JESD-609 Code e4
Series Datamate J-Tek
Packaging Tube
Operating Temperature -55°C~125°C

Physical

Mounting Option 1 LOCKING
Insulation Material Polyphenylene Sulfide (PPS), Glass Filled
Contact Shape Circular
Mounting Type Through Hole
Contact Material Beryllium Copper

Alternative Model

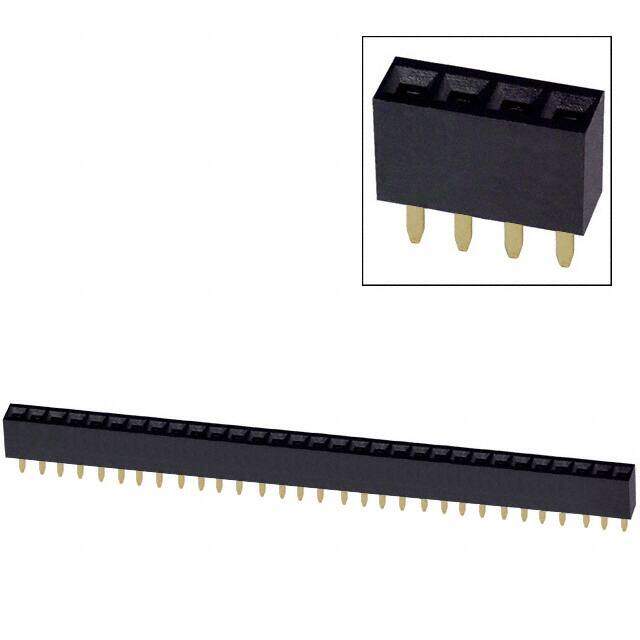

PPPC311LFBN-RC
