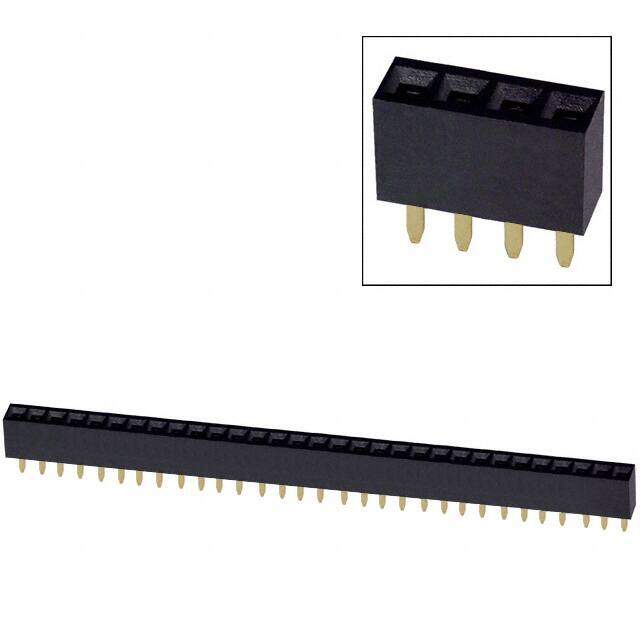

PPPC311LFBN-RC image
Favorite
PPPC311LFBN-RC image
Favorite
RoHS
RoHS RoHS compliant
Package /
Category Connectors, Interconnects / Rectangular Connectors - Headers, Receptacles, Female Sockets
Description CONN HEADER FMALE 31POS .1 GOLD
PDF
/
Inventory: 8337
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and contact information to get a quote.
Quotation Consultation
Is there anything else we can help you solve?
Inquiry

Technical Details

Compliance

Lead Free Lead Free
RoHS Status ROHS3 Compliant
Material Flammability Rating UL94 V-0

Dimensions

Contact Finish Thickness - Mating Flash
Width 2.5mm
Length 79.2mm
Height 8.5mm

Technical

Polarization Key POLARIZED HOUSING
Body Depth 0.334 inch
Body Breadth 0.094 inch
PCB Contact Pattern RECTANGULAR
Number Of PCB Rows 1
Contact Length - Post 0.126 3.20mm
Reliability COMMERCIAL
Reference Standard UL
Number of Conductors ONE
Insulation Color Black
Pitch - Mating 0.100 2.54mm
Number of Positions Loaded All
Style Board to Board
Insulation Height 0.335 8.51mm
Terminal Pitch 2.54mm
Current Rating (Amps) 3A
Contact Type Female Socket
Contact Finish - Mating Gold
Fastening Type Push-Pull
Voltage - Rated 250V
Number of Rows 1
Number of Positions 31
Connector Type Header
Termination Solder
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
Pbfree Code yes
Published 2011
Packaging Tray
Operating Temperature -40°C~105°C

Physical

Housing Material Plastic
Insulation Material Polyester
Contact Shape Square
Mounting Type Through Hole
Mount Through Hole
Contact Material Phosphor Bronze

Supply Chain

Factory Lead Time 4 Weeks
