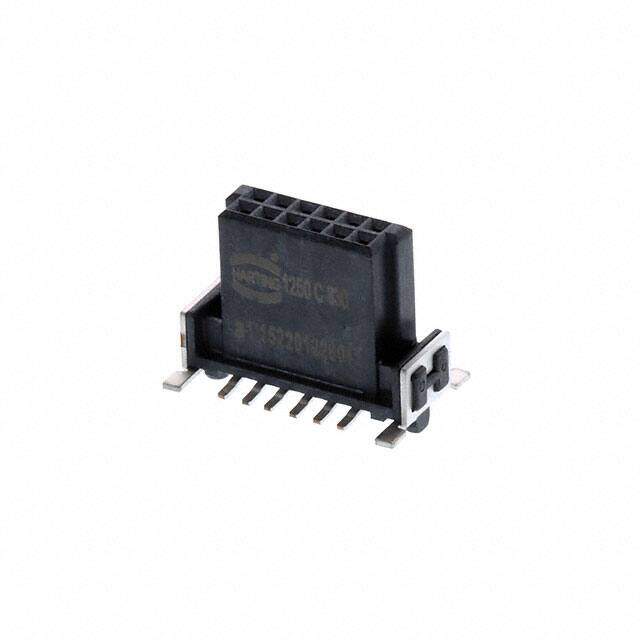

HARTING - 15 22 012 2601000 - SOCKET, 1.27MM, H:9.05MM, SMT, 12WAY
PDF
/
Buying Options
Total Price: USD $4.37
Unit Price: USD $4.3736
≥1 USD $4.3736
≥10 USD $3.9732
≥100 USD $3.500376
Inventory: 919
Minimum: 1
-
+
Technical Details
Compliance
Lead Free Lead Free
RoHS Status ROHS3 Compliant
REACH SVHC No SVHC
Material Flammability Rating UL94 V-0
Dimensions
Stack Height 9.05mm
Stack Height (Mating) 10.8mm ~ 13.8mm
Technical
Withdrawl Force-Min .5004 N
Insertion Force-Max .5004 N
Durability 500 Cycles
PCB Contact Row Spacing 5.4864 mm
Polarization Key POLARIZED HOUSING
Mating Contact Pitch 0.05 inch
Insulation Resistance 10000000000Ohm
Body Depth 0.356 inch
PCB Contact Pattern RECTANGULAR
Contact Finish - Post Tin
Number Of PCB Rows 2
Row Spacing - Mating 0.050 (1.27mm)
Body Length or Diameter 0.5 inch
Reliability COMMERCIAL
Reference Standard UL
Number of Conductors ONE
Insulation Color Black
Pitch - Mating 0.050 1.27mm
Current Rating 2A
Number of Positions Loaded All
Style Board to Board or Cable
Insulation Height 0.356 9.05mm
Orientation Straight
Total Number of Contacts 12
Mixed Contacts NO
Contact Type Female Socket
Filter Feature NO
IEC Conformance NO
DIN Conformance NO
MIL Conformance NO
Contact Finish - Mating Gold
Subcategory Headers and Edge Type Connectors
Fastening Type Push-Pull
Number of Rows 2
Applications General Purpose
Number of Positions 12
Connector Type Receptacle
Termination Solder
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
Feature Board Guide, Pick and Place, Solder Retention
Series har-flex?
Packaging Cut Tape (CT)
Operating Temperature -55°C~125°C
Physical
Housing Material Liquid Crystal Polymer
Insulation Material Liquid Crystal Polymer (LCP)
Contact Shape Square
Mounting Type Surface Mount
Mount Surface Mount
Contact Material Copper Alloy
Supply Chain
Factory Lead Time 5 Weeks
Alternative Model
