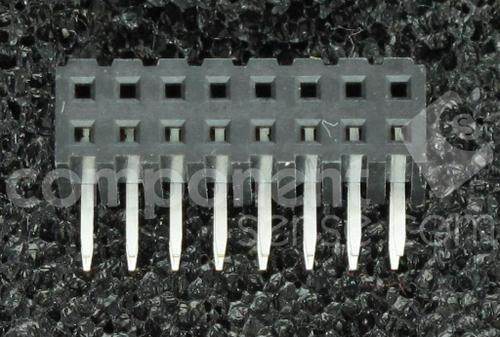

950416-5002-AR

3M
RoHS
/
Package /
Category Connectors, Interconnects / Rectangular Connectors - Headers, Receptacles, Female Sockets
Description Conn Socket Strip SKT 16 POS 2mm Solder RA Thru-Hole
PDF
/
Inventory: 8763
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and contact information to get a quote.
Quotation Consultation
Is there anything else we can help you solve?
Inquiry

Technical Details

Technical

Pitch - Mating 0.079 2.00mm
Insulation Color Black
Row Spacing - Mating 0.079 (2.00mm)
Contact Length - Post 0.118 3.00mm
Number of Contacts 16
Contact Finish - Post Tin
Contact Gender Female
Lead Length 3mm
Current Rating 1A
Number of Positions Loaded All
Style Board to Board
Insulation Height 0.191 4.85mm
Pitch 2mm
Current Rating (Amps) 1A
Contact Type Female Socket
Contact Finish - Mating Gold
Fastening Type Push-Pull
Voltage - Rated 1000VDC
Gender Receptacle
Number of Rows 2
Color Black
Number of Positions 16
Connector Type Receptacle
Termination Solder
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Obsolete
Series 950
Published 2008
Packaging Tube
Operating Temperature -40°C~105°C

Dimensions

Contact Finish Thickness - Mating Flash
Contact Finish Thickness - Post 40.0μin 1.02μm

Compliance

Material Flammability Rating UL94 V-0
RoHS Status RoHS Compliant

Physical

Housing Material Thermoplastic
Insulation Material Thermoplastic
Contact Shape Square
Mounting Type Through Hole, Right Angle
Mount Through Hole
Contact Plating Gold
Contact Material Copper Alloy

Supply Chain

Factory Lead Time 9 Weeks
