0877602416
RoHS
RoHS compliant
RoHS compliantPackage /
Category Connectors, Interconnects / Rectangular Connectors - Headers, Male Pins
Description

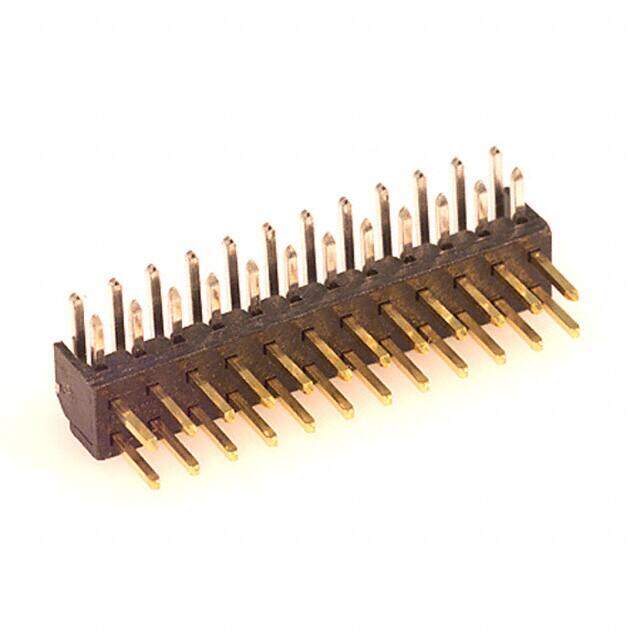

Conn Unshrouded Header HDR 24 POS 2mm Solder RA Thru-Hole Milli-Grid? Tray
PDF
/
Buying Options
Total Price: USD $0.92
Unit Price: USD $0.924
≥1 USD $0.924
≥10 USD $0.78496
≥100 USD $0.648322
≥500 USD $0.60075
Inventory: 6633
Minimum: 1
-
+
Technical Details
Compliance
Lead Free Contains Lead
Flammability Rating UL94 V-0
RoHS Status ROHS3 Compliant
Material Flammability Rating UL94 V-0
Dimensions
Contact Finish Thickness - Post 78.7μin 2.00μm
Contact Finish Thickness - Mating 15.0μin 0.38μm
Width 4mm
Length 24mm
Height 4.3mm
Technical
Glow Wire Compliant Non-compliant
Max Voltage Rating (AC) 125V
Insulation Resistance 1GOhm
Housing Color Black
UL Flammability Code 94V-0
Contact Length - Mating 0.157 4.00mm
Contact Finish - Post Tin
Number of Contacts 24
Lead Pitch 2mm
Shrouding Unshrouded
Contact Length - Post 0.102 2.60mm
Row Spacing - Mating 0.079 (2.00mm)
Pitch - Mating 0.079 2.00mm
Current Rating 2A
Number of Positions Loaded All
Style Board to Board or Cable
Insulation Height 0.169 4.30mm
Orientation Right Angle
Mixed Contacts NO
Contact Type Male Pin
Filter Feature NO
IEC Conformance NO
DIN Conformance NO
MIL Conformance NO
Contact Finish - Mating Gold
Voltage - Rated DC 125V
Fastening Type Push-Pull
Voltage - Rated 125V
Gender Male
Number of Rows 2
Applications Automotive, General Purpose, Telecommunications
Min Operating Temperature -55°C
Max Operating Temperature 105°C
Connector Type Header
Termination Solder
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
Pbfree Code yes
JESD-609 Code e3
Series Milli-Grid 87760
Packaging Tray
Physical
Housing Material Thermoplastic
Insulation Material Polycyclohexylenedimethylene Terephthalate (PCT), Glass Filled
Contact Shape Square
Mounting Type Through Hole, Right Angle
Mount Through Hole
Contact Material Phosphor Bronze
Supply Chain
Factory Lead Time 22 Weeks
