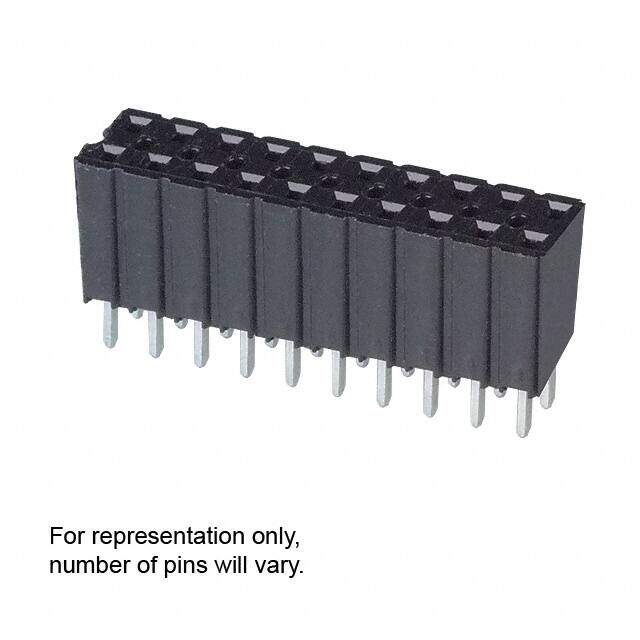

929975-01-27
RoHS
/
Package /
Category Connectors, Interconnects / Rectangular Connectors - Headers, Receptacles, Female Sockets
Description
CONN RCPT 54POS 0.1 TIN-LEAD PCB
PDF
/
Inventory: 3952
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and
contact information to get a quote.
Quotation Consultation
Technical Details
Compliance
Lead Free Contains Lead
RoHS Status Non-RoHS Compliant
Material Flammability Rating UL94 V-0
Dimensions
Contact Finish Thickness - Post 100.0μin 2.54μm
Contact Finish Thickness - Mating 100.0μin 2.54μm
Width 5.08mm
Length 68.58mm
Technical
Max Current Rating 2A
Housing Color Black
Contact Finish - Post Tin-Lead
Number of Contacts 54
Contact Length - Post 0.125 3.18mm
Row Spacing - Mating 0.100 (2.54mm)
Insulation Color Black
Pitch - Mating 0.100 2.54mm
Number of Positions Loaded All
Style Board to Board
Insulation Height 0.325 8.25mm
Depth 5.08mm
Orientation Straight
Pitch 2.54mm
Current Rating (Amps) 2A
Contact Type Forked
Contact Finish - Mating Tin-Lead
Fastening Type Push-Pull
Voltage - Rated 1500V
Gender Female
Number of Rows 2
Color Black
Min Operating Temperature -40°C
Max Operating Temperature 105°C
Number of Positions 54
Connector Type Receptacle
Termination Solder
Moisture Sensitivity Level (MSL) Not Applicable
Part Status Obsolete
Series 929
Published 2011
Packaging Bulk
Operating Temperature -40°C~105°C
Physical
Housing Material Polybutylene
Insulation Material Polycyclohexylenedimethylene Terephthalate (PCT), Polyester, Glass Filled
Contact Shape Square
Mounting Type Through Hole
Mount Through Hole
Contact Plating Lead, Tin
Contact Material Copper Alloy
