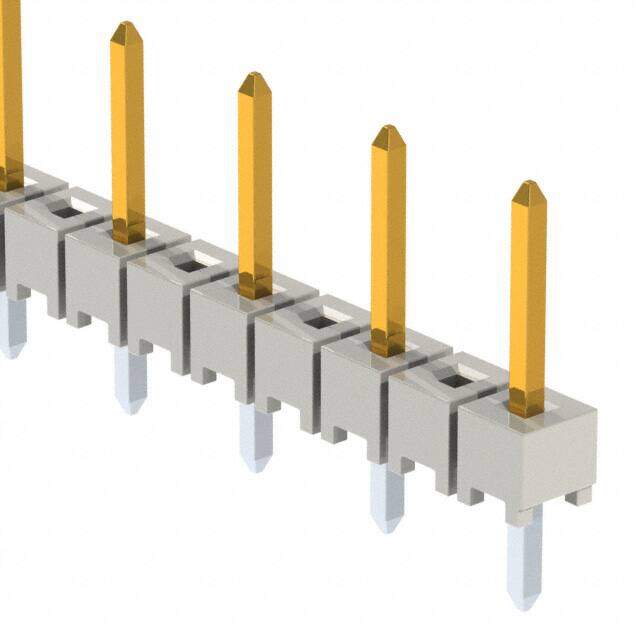

HTSW-219-07-SS-S image
Favorite
HTSW-219-07-SS-S image
Favorite

HTSW-219-07-SS-S

Samtec Inc.
RoHS
RoHS RoHS compliant
Package /
Category Connectors, Interconnects / Rectangular Connectors - Headers, Male Pins
Description Conn Unshrouded Header HDR 19 POS 2.54mm Solder ST Thru-Hole
PDF
/
Inventory: 4777
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and contact information to get a quote.
Quotation Consultation
Is there anything else we can help you solve?
Inquiry

Technical Details

Compliance

RoHS Status ROHS3 Compliant
Material Flammability Rating UL94 V-0

Dimensions

Contact Finish Thickness - Mating 30.0μin 0.76μm
Length 48.26mm

Technical

Max Voltage Rating (AC) 550V
Mating Contact Pitch 0.2 inch
Overall Contact Length 0.430 10.92mm
Body Breadth 0.098 inch
PCB Contact Pattern RECTANGULAR
Contact Length - Mating 0.230 5.84mm
Contact Finish - Post Tin
Number Of PCB Rows 1
Shrouding Unshrouded
Contact Length - Post 0.100 2.54mm
Reliability COMMERCIAL
Number of Conductors ONE
Insulation Color Natural
Pitch - Mating 0.200 5.08mm
Number of Positions Loaded All
Style Board to Board or Cable
Insulation Height 0.100 2.54mm
Depth 2.48mm
Terminal Pitch 5.08mm
Orientation Straight
Current Rating (Amps) Varies by WireGAuge
Contact Type Male Pin
Contact Finish - Mating Gold
Fastening Type Push-Pull
Number of Rows 1
Number of Positions 19
Connector Type Header
Termination Solder
Moisture Sensitivity Level (MSL) Not Applicable
Part Status Active
Series HTSW
Packaging Bulk
Operating Temperature -55°C~125°C

Physical

Housing Material Polymer
Insulation Material Liquid Crystal Polymer (LCP)
Contact Shape Square
Mounting Type Through Hole
Contact Material Phosphor Bronze

Supply Chain

Factory Lead Time 3 Weeks
