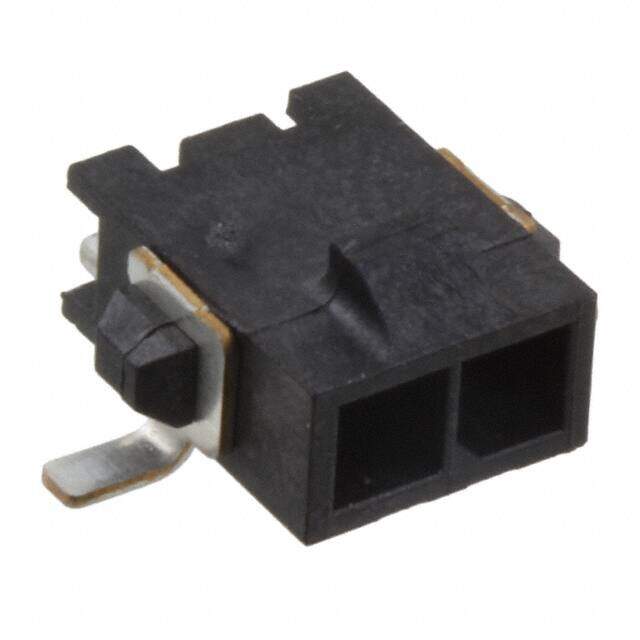

2-1445091-2
RoHS
RoHS compliant
RoHS compliantPackage /
Category Connectors, Interconnects / Rectangular Connectors - Headers, Male Pins
Description
Conn Power HDR 2 POS 3mm Solder RA SMD 2 Terminal 1 Port T/R
PDF
/
Buying Options
Total Price: USD $0.95
Unit Price: USD $0.9504
≥1 USD $0.9504
≥10 USD $0.89056
≥100 USD $0.766392
Inventory: 565
Minimum: 1
-
+
Technical Details
Technical
Contact Gender Male
Housing Color Black
Operating Supply Voltage 250V
ELV Compliant
Max Voltage Rating (AC) 250V
Plating Gold
Number of Ports 1
Sealable No
Contact Current Rating 5A
Circuit Application Power
Number of Power Positions 2
Contact Retention Without
VDE Tested Yes
Contact Finish - Post Tin
Number of Contacts 2
Shrouding Shrouded - 4 Wall
Approval Agency CSA
Insulation Color Black
Pitch - Mating 0.118 3.00mm
Current Rating 5A
Number of Positions Loaded All
Style Board to Cable/Wire
Insulation Height 0.152 3.85mm
Depth 11.16mm
Orientation Right Angle
Pitch 2.9972mm
Current Rating (Amps) Varies by WireGAuge
Contact Type Male Pin
Contact Finish - Mating Gold
Fastening Type Locking Ramp
Voltage - Rated 250V
Number of Rows 1
Applications General Purpose
Color Black
Min Operating Temperature -40°C
Max Operating Temperature 221°C
Number of Positions 2
Connector Type Header
Termination Solder
Number of Terminations 2
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
Feature Solder Retention
Series Micro MATE-N-LOK
Published 2005
Packaging Tape & Reel (TR)
Operating Temperature -40°C~105°C
Dimensions
Length 10mm
Plating Thickness 2.54μm
Contact Finish Thickness - Mating 15.0μin 0.38μm
Contact Finish Thickness - Post 100.0μin 2.54μm
PCB Thickness 62μm
Compliance
Material Flammability Rating UL94 V-0
Radiation Hardening No
RoHS Status RoHS Compliant
Flammability Rating UL94 V-0
Physical
PCB Mounting Orientation Right Angle
Housing Material Nylon
Insulation Material Polyamide (PA), Nylon
Contact Shape Square
Mounting Type Surface Mount, Right Angle
Mount Surface Mount
Contact Plating Tin, Gold
Contact Material Brass
Supply Chain
Lifecycle Status ACTIVE (Last Updated: 3 days ago)
Factory Lead Time 19 Weeks
