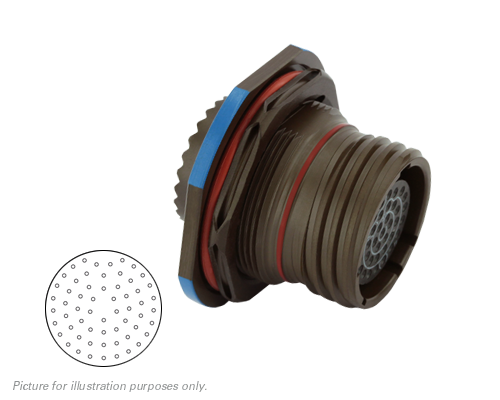

8D725W61SE
RoHS
/
Package /
Category Connectors, Interconnects / Circular Connectors
Description
8D 61C 61#20 SKT J/N
PDF
/
Inventory: 6236
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and
contact information to get a quote.
Quotation Consultation
Technical Details
Physical
Contact Plating Gold
Shell Material Aluminium
Insert Material Peek
Receptacle Mounting Type Jam Nut Receptacle
Nut Material Aluminium
Technical
Connector Type Receptacle
Contact Type Crimp
Shielding Yes
Function signal
Number of Contacts 61
Contact Gender Socket (Female)
Shell Size 25
Plating Cadmium
Mating Cycles 500
Coupling Thread
Layout 61
Salt Spray (h) 500
Temperature Max. (°C) 175
Temperature Max. (F°) 347
Temperature Min. (°C) -65
Temperature Min. (°F) -85
Sealing Level (IP) 67
Vrms (Sea Level) 1800
Plating detail Olive drab Cadmium (conductive) -65°C to +175°C
Number of cavity #20 61
#20 contact rating (A) 7.30
Dimensions
Width (in) 2.19
Length (in) 1.28
Height (in) 2.19
Height (mm) 55.60
Length (mm) 32.50
Width (mm) 55.60
