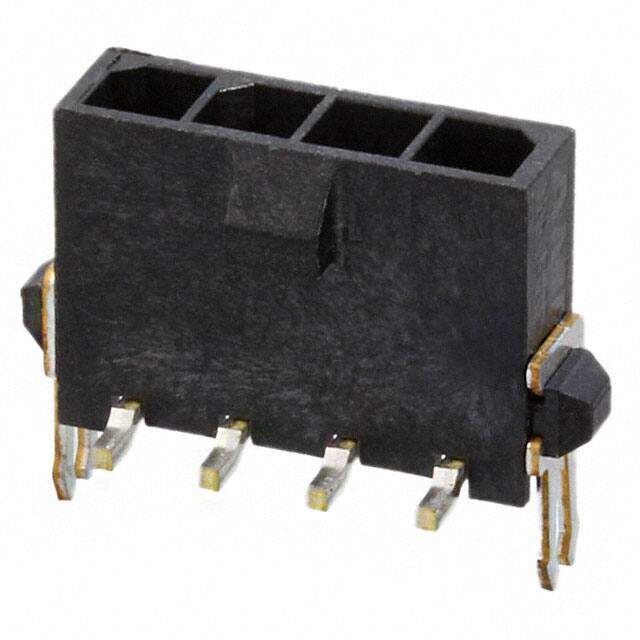

1445052-4
RoHS
/
Package /
Category Connectors, Interconnects / Rectangular Connectors - Headers, Male Pins
Description
Pin & Socket Connectors MICRO MNL HDR ASSY
PDF
/
Inventory: 6796
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and
contact information to get a quote.
Quotation Consultation
Technical Details
Supply Chain
Factory Lead Time 8 Weeks
Physical
Contact Material Brass
Contact Plating Lead, Tin
Mount Surface Mount
Mounting Type Surface Mount
Contact Shape Square
Insulation Material Polyamide (PA), Nylon
Housing Material Nylon
Technical
Operating Temperature -40°C~105°C
Packaging Tape & Reel (TR)
Published 2005
Series Micro MATE-N-LOK
Feature Board Lock, Pick and Place
Part Status Obsolete
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Termination Solder
Connector Type Header
Number of Positions 4
Color Black
Applications General Purpose
Number of Rows 1
Voltage - Rated 250V
Fastening Type Locking Ramp
Contact Finish - Mating Tin-Lead
Contact Type Male Pin
Current Rating (Amps) Varies by WireGAuge
Pitch 3mm
Orientation Straight
Insulation Height 0.364 9.25mm
Style Board to Cable/Wire
Number of Positions Loaded All
Current Rating 5A
Pitch - Mating 0.118 3.00mm
Insulation Color Black
Shrouding Shrouded - 4 Wall
Number of Contacts 4
Contact Finish - Post Tin-Lead
Housing Color Black
ELV Compliant
Dimensions
Height 9.24mm
Length 16mm
Width 3.86mm
Contact Finish Thickness - Mating 100.0μin 2.54μm
Contact Finish Thickness - Post 100.0μin 2.54μm
Compliance
Material Flammability Rating UL94 V-0
Radiation Hardening No
RoHS Status Non-RoHS Compliant
Flammability Rating UL94 V-0
Lead Free Contains Lead
