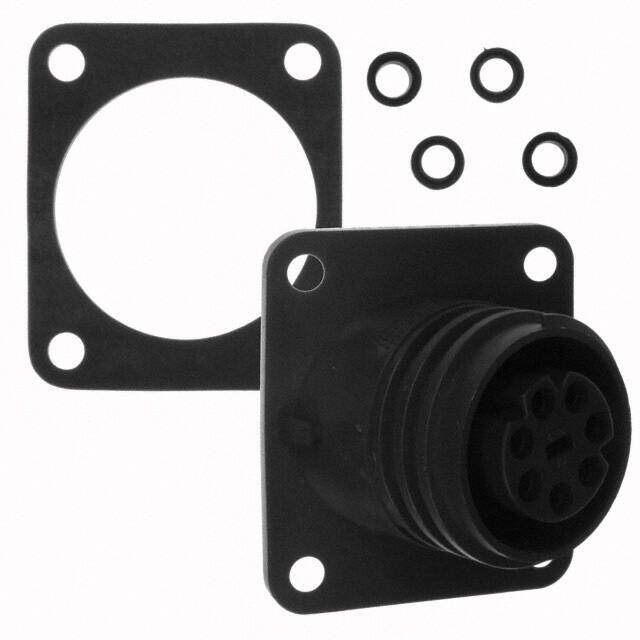

EXP-0941/07/S
RoHS
RoHS compliant
RoHS compliantPackage /
Category Connectors, Interconnects / Circular Connectors
Description
CONN RCPT FMALE 7POS SCREW
PDF
/
Buying Options
Total Price: USD $105.41
Unit Price: USD $105.4064
≥1 USD $105.4064
≥10 USD $96.72432
≥100 USD $93.004032
≥500 USD $89.903968
≥1000 USD $84.943672
Inventory: 32
Minimum: 1
-
+
Technical Details
Compliance
Ratings Dust Tight, IP68, Waterproof
Flammability Rating UL94 V-0
RoHS Status ROHS3 Compliant
REACH SVHC No SVHC
Material Flammability Rating UL94 V-0
Dimensions
Length 52mm
Technical
Max Current Rating 16A
Backshell Type SOLID
Empty Shell NO
Contact Gender Female
Mating Information MULTIPLE MATING PARTS AVAILABLE
Current Rating 16A
Depth 70mm
Ingress Protection IP68 - Dust Tight, Waterproof
Shielding Unshielded
Orientation Keyed
Total Number of Contacts 7
Option GENERAL PURPOSE
Mixed Contacts NO
Filter Feature NO
IEC Conformance YES
DIN Conformance NO
MIL Conformance NO
Contact Finish - Mating Nickel
Fastening Type Threaded
Voltage - Rated 430VAC/DC
Gender Receptacle
Applications Industrial
Color Black
Number of Positions 7 (6 Power + PE)
Connector Type Receptacle, Female Sockets
Termination Screw
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
Feature UV Resistant
Series EXPlora
Published 2009
Packaging Bulk
Operating Temperature -20°C~55°C
Physical
Body Material PET, Polyester
Housing Material PET
Shell Material Polyester
Number of Pins 7
Mounting Feature Flange
Mounting Type Panel Mount
Mount Flanges, Panel
Contact Material Brass
Supply Chain
Factory Lead Time 24 Weeks
