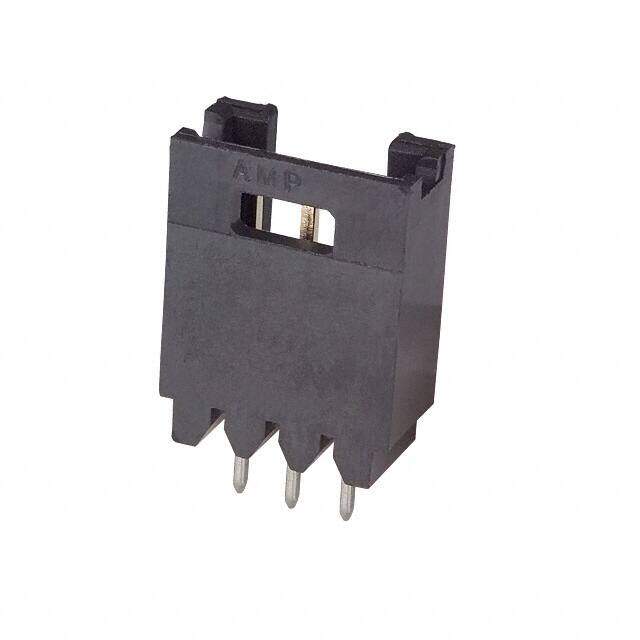

103414-1
RoHS
/
Package /
Category Connectors, Interconnects / Rectangular Connectors - Headers, Male Pins
Description
CONN HEADER VERT .100 3POS 30AU
PDF
/
Buying Options
Total Price: USD $0.96
Unit Price: USD $0.9592
≥1 USD $0.9592
≥10 USD $0.841984
≥100 USD $0.78144
≥500 USD $0.760109
Inventory: 2189
Minimum: 1
-
+
Technical Details
Compliance
Lead Free Contains Lead
Flammability Rating UL94 V-0
RoHS Status Non-RoHS Compliant
Material Flammability Rating UL94 V-0
Dimensions
PCB Thickness 1.397mm
Contact Finish Thickness - Post 100.0μin 2.54μm
Contact Finish Thickness - Mating 30.0μin 0.76μm
Length 10.67mm
Technical
High Speed Serial Data Connector Yes
Shrouded End Dimension 1.778 mm
High Temperature Housing No
Mating Post Length 6.1mm
Contact Current Rating 3A
Dielectric Withstanding Voltage 750VAC V
ELV Non-Compliant
Row Spacing 2.54 mm
Insulation Resistance 5GOhm
Overall Contact Length 0.589 14.96mm
Rated Current (Signal) 3A
Lead Length 3.302mm
Housing Color Black
UL Flammability Code 94V-0
Body Breadth 0.227 inch
Mating Information MULTIPLE MATING PARTS AVAILABLE
PCB Contact Pattern RECTANGULAR
Contact Length - Mating 0.240 6.10mm
Contact Finish - Post Tin-Lead
Lead Pitch 2.54mm
Number Of PCB Rows 1
Shrouding Shrouded - 4 Wall
Contact Length - Post 0.130 3.30mm
Approval Agency CSA
Reliability COMMERCIAL
Number of Conductors ONE
Pitch - Mating 0.100 2.54mm
Current Rating 3A
Number of Positions Loaded All
Style Board to Board or Cable
Insulation Height 0.549 13.94mm
Depth 5.77mm
Orientation Vertical
Option GENERAL PURPOSE
Mixed Contacts NO
Contact Type Male Pin
Filter Feature NO
IEC Conformance NO
DIN Conformance NO
MIL Conformance NO
Contact Finish - Mating Gold
Fastening Type Push-Pull
Gender Male
Number of Rows 1
Number of Positions 3
Connector Type Header
ECCN Code EAR99
Termination Solder
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
Pbfree Code no
JESD-609 Code e0
Series AMPMODU Mod II
Published 2005
Packaging Tube
Operating Temperature -65°C~105°C
Physical
Insulation Material Thermoplastic
Contact Shape Square
Mounting Type Through Hole
Mount Through Hole
Contact Material Copper Alloy
Supply Chain
Lifecycle Status ACTIVE (Last Updated: 5 days ago)
Factory Lead Time 17 Weeks
Alternative Model
