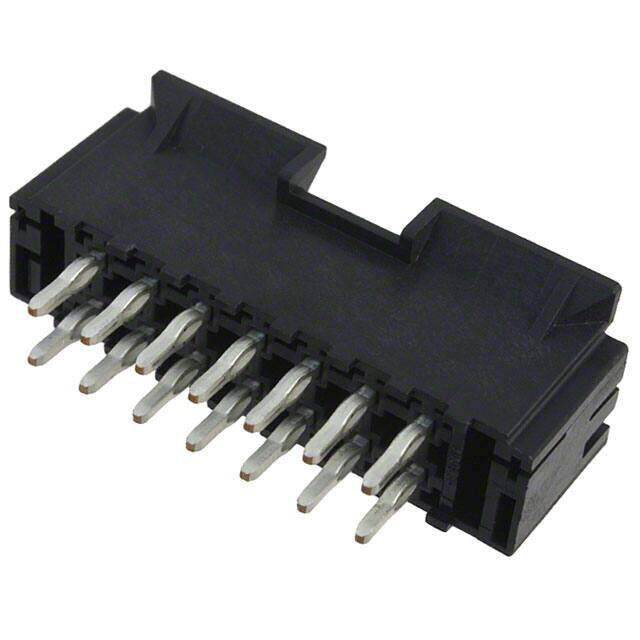

0438790038
RoHS
/
Package /
Category Connectors, Interconnects / Rectangular Connectors - Headers, Male Pins
Description
VERT HDR FOR .094PCB 14CKT GOLD
PDF
/
Inventory: 8196
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and
contact information to get a quote.
Quotation Consultation
Technical Details
Physical
Contact Material Phosphor Bronze
Mounting Type Through Hole
Contact Shape Square
Insulation Material Polyamide (PA), Nylon, Glass Filled
Shell Material POLYETHYLENE
Technical
Packaging Tray
Series Mini-Fit BMI/CPI 43879
Part Status Obsolete
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Termination Press-Fit, Solder
Connector Type Header
Number of Positions 14
Applications General Purpose, Industrial, Medical, Telecommunications
Number of Rows 2
Additional Feature POLARIZED
Fastening Type Latch Holder
Contact Finish - Mating Gold
MIL Conformance NO
DIN Conformance NO
IEC Conformance NO
Filter Feature NO
Contact Type Male Pin
Mixed Contacts NO
Insulation Height 0.587 14.91mm
Style Board to Board or Cable
Number of Positions Loaded All
Pitch - Mating 0.165 4.20mm
Insulation Color Black
Row Spacing - Mating 0.165 (4.20mm)
Contact Length - Post 0.229 5.82mm
Shrouding Shrouded - 4 Wall
Contact Finish - Post Tin
UL Flammability Code 94V-0
Empty Shell NO
Dimensions
Contact Finish Thickness - Mating 30.0μin 0.76μm
Contact Finish Thickness - Post 100.0μin 2.54μm
Compliance
Material Flammability Rating UL94 V-0
RoHS Status Non-RoHS Compliant
