0022284024
RoHS
RoHS compliant
RoHS compliantPackage /
Category Connectors, Interconnects / Rectangular Connectors - Headers, Male Pins
Description

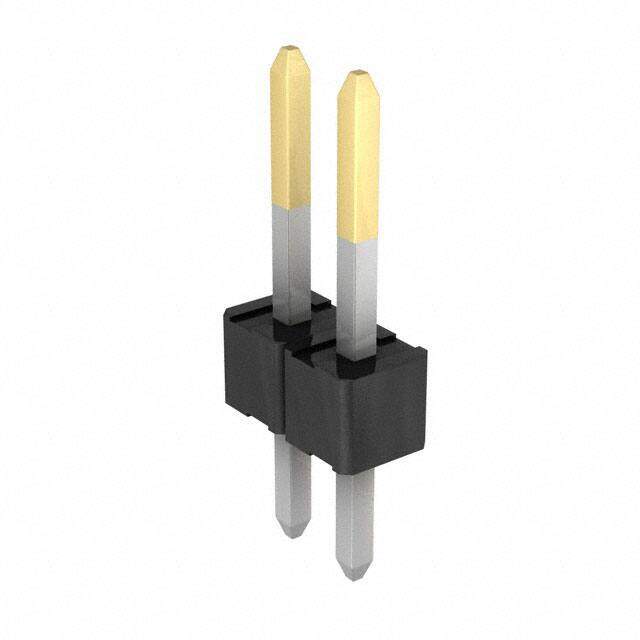

CONN HEADER VERT 2POS 2.54MM
PDF
/
Buying Options
Total Price: USD $0.22
Unit Price: USD $0.22
≥1 USD $0.22
≥10 USD $0.17776
≥100 USD $0.127688
≥500 USD $0.099942
≥1000 USD $0.088836
≥3000 USD $0.080511
Inventory: 1259
Minimum: 1
-
+
Technical Details
Compliance
RoHS Status ROHS3 Compliant
Material Flammability Rating UL94 V-0
Dimensions
Contact Finish Thickness - Post 100.0μin 2.54μm
Contact Finish Thickness - Mating 15.0μin 0.38μm
Technical
Overall Contact Length 0.530 13.46mm
Rated Current (Signal) 4A
UL Flammability Code 94V-0
PCB Contact Pattern RECTANGULAR
Contact Length - Mating 0.320 8.13mm
Contact Finish - Post Tin
Number Of PCB Rows 1
Shrouding Unshrouded
Contact Length - Post 0.120 3.05mm
Reference Standard CSA, UL
Number of Conductors ONE
Insulation Color Black
Pitch - Mating 0.100 2.54mm
Number of Positions Loaded All
Style Board to Board or Cable
Insulation Height 0.090 2.29mm
Mixed Contacts NO
Contact Type Male Pin
Filter Feature NO
Contact Finish - Mating Gold
Fastening Type Push-Pull
Number of Rows 1
Applications Automotive, General Purpose, Medical, Telecommunications
Number of Positions 2
Connector Type Header, Breakaway
Termination Solder
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
Pbfree Code yes
JESD-609 Code e3
Series KK 42375
Packaging Bulk
Physical
Insulation Material Polyamide (PA), Nylon, Glass Filled
Contact Shape Square
Mounting Type Through Hole
