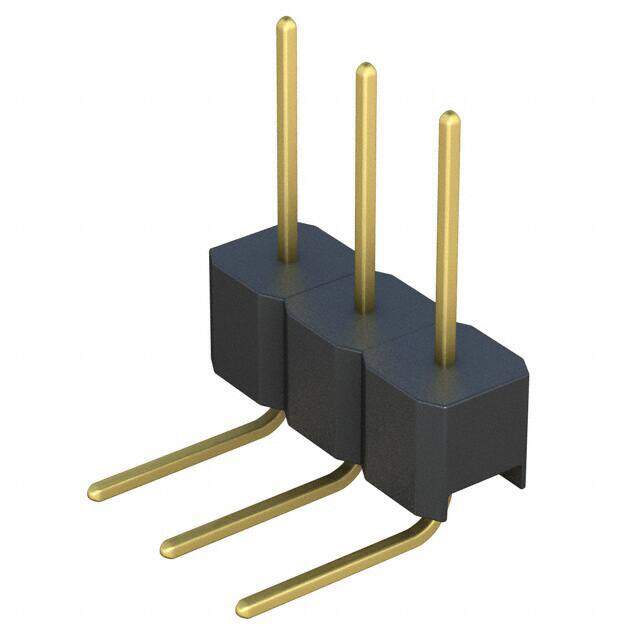

PRPN031PARN image
Favorite
PRPN031PARN image
Favorite
RoHS
/
Package /
Category Connectors, Interconnects / Rectangular Connectors - Headers, Male Pins
Description CONN HEADER 2MM SNGL R/A 3POS
PDF
/
Inventory: 3981
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and contact information to get a quote.
Quotation Consultation
Is there anything else we can help you solve?
Inquiry

Technical Details

Physical

Contact Material Brass
Mount Through Hole
Mounting Type Through Hole, Right Angle
Contact Shape Square
Insulation Material Polyester
Housing Material Plastic

Technical

Operating Temperature -40°C~105°C
Packaging Bulk
Published 2002
Part Status Obsolete
Moisture Sensitivity Level (MSL) Not Applicable
Termination Solder
ECCN Code EAR99
Connector Type Header
Number of Positions 3
Number of Rows 1
Gender Male
Additional Feature NONE
Fastening Type Push-Pull
Contact Finish - Mating Gold
Contact Type Male Pin
Current Rating (Amps) 1A
Insulation Height 0.079 2.00mm
Style Board to Board or Cable
Number of Positions Loaded All
Pitch - Mating 0.079 2.00mm
Number of Conductors ONE
Reference Standard UL, CSA
Reliability COMMERCIAL
Contact Length - Post 0.110 2.79mm
Shrouding Unshrouded
Number Of PCB Rows 1
Lead Pitch 2mm
Contact Length - Mating 0.157 4.00mm
PCB Contact Pattern RECTANGULAR
Body Breadth 0.079 inch
Housing Color Black
Insulation Resistance 5000000000Ohm
Mating Contact Pitch 0.079 inch
Dielectric Withstanding Voltage 500VAC V

Dimensions

Height 2mm
Length 6mm
Width 2mm
Contact Finish Thickness - Mating Flash

Compliance

Material Flammability Rating UL94 V-0
RoHS Status Non-RoHS Compliant
Lead Free Contains Lead
