EHF-113-01-L-D-RA
RoHS
RoHS compliant
RoHS compliantPackage /
Category Connectors, Interconnects / Rectangular Connectors - Headers, Male Pins
Description

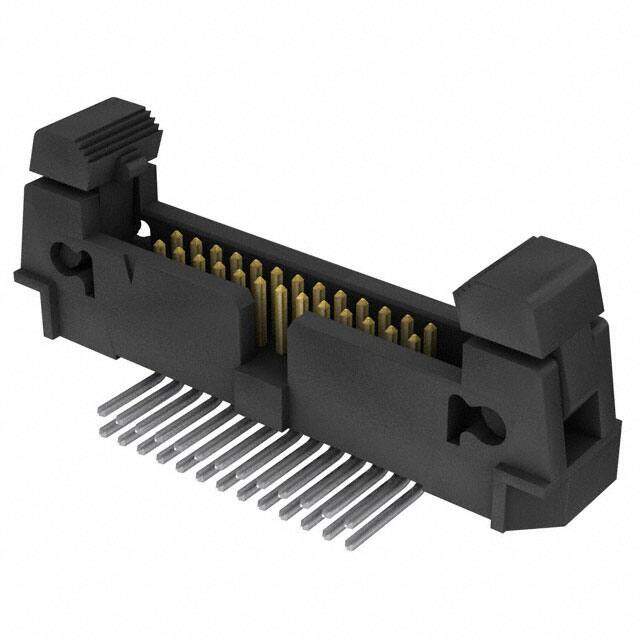

SAMTEC EHF-113-01-L-D-RA Wire-To-Board Connector, Right Angle, EHF Series, Through Hole, Header, 26 Contacts, 1.27 mm
PDF
/
Buying Options
Total Price: USD $8.77
Unit Price: USD $8.7736
≥1 USD $8.7736
≥10 USD $7.89272
≥100 USD $7.053992
≥500 USD $5.91008
≥1000 USD $5.223742
Inventory: 564
Minimum: 1
-
+
Technical Details
Compliance
RoHS Status ROHS3 Compliant
REACH SVHC No SVHC
Dimensions
Contact Finish Thickness - Mating 10.0μin 0.25μm
Plating Thickness 10μin
Length 30.99mm
Technical
Polarization Key POLARIZED HOUSING
Max Current Rating 1.75A
Mating Contact Pitch 0.05 inch
Housing Color Black
PCB Contact Pattern RECTANGULAR
Contact Length - Mating 0.120 3.05mm
Contact Finish - Post Tin
Number Of PCB Rows 2
Shrouding Shrouded - 4 Wall
Contact Length - Post 0.090 2.29mm
Row Spacing - Mating 0.050 (1.27mm)
Reliability COMMERCIAL
Number of Conductors ONE
Pitch - Mating 0.050 1.27mm
Current Rating 1.75A
Number of Positions Loaded All
Style Board to Cable/Wire
Insulation Height 0.263 6.67mm
Depth 13.84mm
Orientation Right Angle
Option GENERAL PURPOSE
Mixed Contacts NO
Contact Type Male Pin
Filter Feature NO
IEC Conformance NO
DIN Conformance NO
MIL Conformance NO
Contact Finish - Mating Gold
Fastening Type Latch Lock/Eject Hooks
HTS Code 8536.69.40.40
Gender Male
Number of Rows 2
Number of Positions 26
Connector Type Header
ECCN Code EAR99
Termination Solder
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
Pbfree Code yes
Feature Keying Slot
JESD-609 Code e3
Series EHF
Published 2003
Packaging Tube
Operating Temperature -55°C~125°C
Physical
Housing Material Polymer
Insulation Material Liquid Crystal Polymer (LCP), Glass Filled
Contact Shape Square
Mounting Type Through Hole, Right Angle
Mount Through Hole
Contact Material Phosphor Bronze
