XG4A-2632
RoHS
RoHS compliant
RoHS compliantPackage /
Category Connectors, Interconnects / Rectangular Connectors - Headers, Male Pins
Description

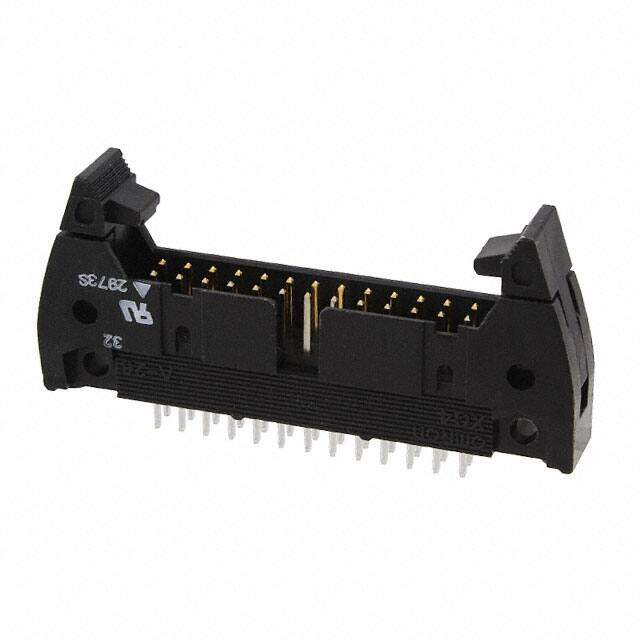

Conn Ejector Header PL 26 POS 2.54mm Solder ST Thru-Hole
PDF
/
Buying Options
Total Price: USD $1.56
Unit Price: USD $1.5576
≥1 USD $1.5576
≥10 USD $1.26969
≥100 USD $1.21198
≥500 USD $1.016074
Inventory: 6408
Minimum: 1
-
+
Technical Details
Compliance
RoHS Status RoHS Compliant
Radiation Hardening No
Material Flammability Rating UL94 V-0
Dimensions
Stack Height (Mating) 23.5mm
Contact Finish Thickness - Post 78.7μin 2.00μm
Contact Finish Thickness - Mating 5.90μin 0.150μm
Length 52.3mm
Technical
Max Current Rating 3A
Max Voltage Rating (AC) 300V
Contact Resistance 20mOhm
Overall Contact Length 0.657 16.70mm
Housing Color Black
Contact Gender Male
Contact Length - Mating 0.240 6.10mm
Contact Finish - Post Tin
Shrouding Shrouded - 4 Wall
Contact Length - Post 0.126 3.20mm
Row Spacing - Mating 0.100 (2.54mm)
Pitch - Mating 0.100 2.54mm
Current Rating 3A
Number of Positions Loaded All
Style Board to Cable/Wire
Insulation Height 0.669 17.00mm
Depth 8.5mm
Orientation Straight
Contact Type Male Pin
Contact Finish - Mating Gold
Fastening Type Latch Lock/Eject Hooks, Short
Number of Rows 2
Number of Positions 26
Connector Type Header
Termination Solder
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
Feature Keying Slot, Mounting Flange
JESD-609 Code e3
Series XG4
Published 2002
Packaging Bulk
Operating Temperature -55°C~105°C
Physical
Housing Material Polybutylene
Insulation Material Polybutylene Terephthalate (PBT), Glass Filled
Contact Shape Square
Mounting Type Through Hole
Mount Through Hole
Contact Material Brass, Nickel
Supply Chain
Factory Lead Time 10 Weeks
Alternative Model
