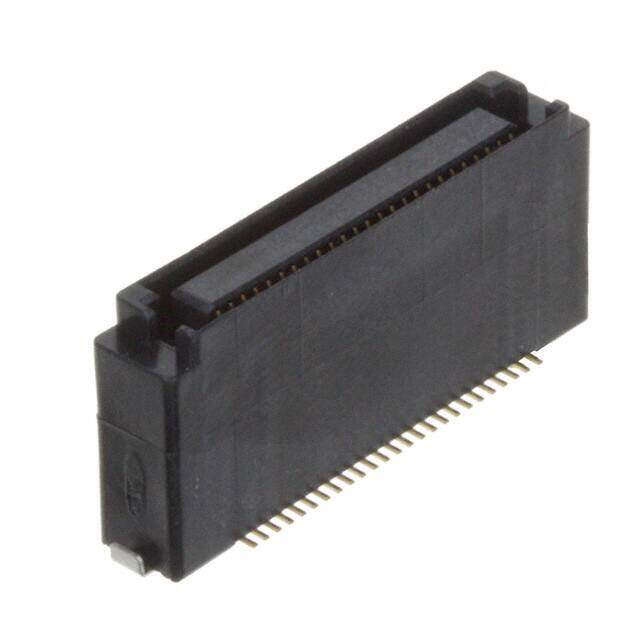

KX14-50K11DE image
Favorite
KX14-50K11DE image
Favorite

KX14-50K11DE

JAE Electronics
RoHS
/
Package /
Category Connectors, Interconnects / Rectangular Connectors - Arrays, Edge Type, Mezzanine (Board to Board)
Description CONN RCPT 0.8MM 50POS SMD GOLD
PDF
/
Inventory: 6922
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and contact information to get a quote.
Quotation Consultation
Is there anything else we can help you solve?
Inquiry

Technical Details

Compliance

Lead Free Lead Free
Flammability Rating UL94 V-0
RoHS Status RoHS Compliant

Dimensions

Stack Height 11mm
Stack Height (Mating) 13mm 14mm 15mm
Contact Finish Thickness 3.94μin 0.10μm

Technical

Insulation Resistance 100MOhm
Housing Color Black
Number of Contacts 50
Lead Pitch 800μm
Contact Finish Gold
Current Rating 500mA
Orientation Straight
Pitch 0.031 0.80mm
Gender Female
Number of Rows 2
Color Black
Number of Positions 50
Connector Type Receptacle, Outer Shroud Contacts
Termination SMD/SMT
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Obsolete
Feature Board Guide, Solder Retention
Series KX14
Published 2004
Packaging Tray

Physical

Housing Material Plastic
Mounting Type Surface Mount
Mount Surface Mount
Contact Plating Gold
