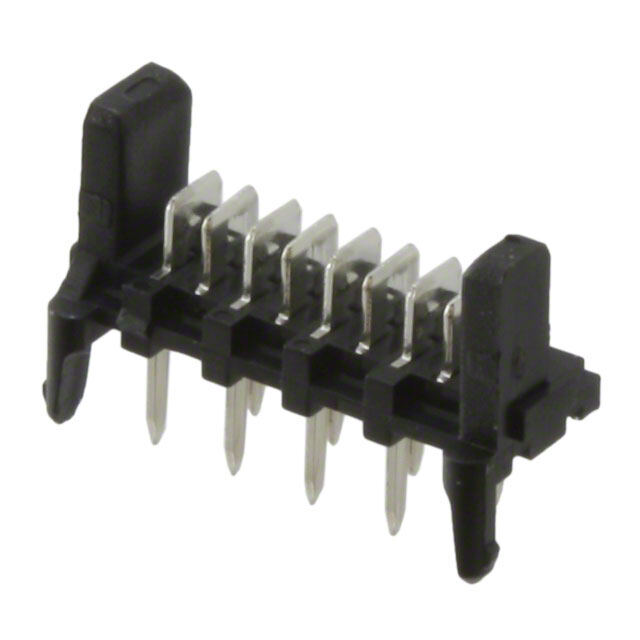

90325-9008
RoHS
/
Package /
Category Connectors, Interconnects / Rectangular Connectors - Headers, Male Pins
Description
Picoflex? PF-50 Header, Vertical, Low Profile, 8 Circuits, Tin (Sn) Plating, Tube Packaging
PDF
/
Buying Options
Total Price: USD $0.51
Unit Price: USD $0.5127
≥1 USD $0.5127
≥10 USD $0.483676
≥100 USD $0.456298
≥500 USD $0.43047
≥1000 USD $0.406102
Inventory: 4832
Minimum: 1
-
+
Technical Details
Supply Chain
Factory Lead Time 8 Weeks
Physical
Contact Material Brass
Contact Plating Tin
Mount Through Hole
Housing Material Polyester
Technical
Published 2010
Pbfree Code yes
Part Status Active
Termination Solder
ECCN Code EAR99
Connector Type Blade Pin
Max Operating Temperature 105°C
Min Operating Temperature -40°C
Color Black
Number of Rows 1
Voltage - Rated 250V
Additional Feature STAGGERED CONFIGURATION
Subcategory Headers and Edge Type Connectors
Contact Finish - Mating NOT SPECIFIED
MIL Conformance NO
DIN Conformance NO
IEC Conformance NO
Filter Feature NO
Mixed Contacts NO
Option GENERAL PURPOSE
Pitch 1.27mm
Orientation Vertical
Current Rating 1.2A
Number of Conductors ONE
Reference Standard UL, CSA
Reliability COMMERCIAL
Body Length or Diameter 0.567 inch
Number Of PCB Rows 2
Lead Pitch 1.27mm
Number of Contacts 8
PCB Contact Pattern STAGGERED
Body Breadth 0.235 inch
Contact Gender Male
UL Flammability Code 94V-0
Lead Length 3.3mm
Body Depth 0.252 inch
Contact Resistance 15mOhm
Body/Shell Style RECEPTACLE
Polarization Key POLARIZED HOUSING
Dielectric Withstanding Voltage 750VAC V
PCB Contact Row Spacing 2.54 mm
Durability 30 Cycles
Contact Pattern RECTANGULAR
Glow Wire Compliant Non-compliant
Dimensions
Plating Thickness 200μin
Compliance
RoHS Status RoHS Compliant
Lead Free Lead Free
