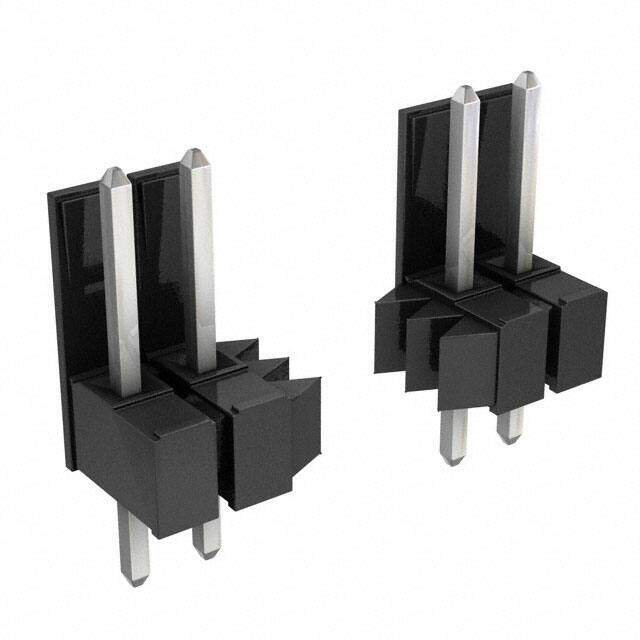

0022283280
RoHS
RoHS compliant
RoHS compliantPackage /
Category Connectors, Interconnects / Rectangular Connectors - Headers, Male Pins
Description
Headers & Wire Housings KK 100 Hdr Pol Vert Pol Vert 28 Ckt Tin
PDF
/
Inventory: 7226
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and
contact information to get a quote.
Quotation Consultation
Technical Details
Compliance
RoHS Status ROHS3 Compliant
Material Flammability Rating UL94 V-0
Dimensions
Contact Finish Thickness - Post 100.0μin 2.54μm
Contact Finish Thickness - Mating 100.0μin 2.54μm
Length 71.12mm
Technical
Number of Circuits 27
Overall Contact Length 0.540 13.72mm
UL Flammability Code 94V-0
Contact Length - Mating 0.295 7.49mm
Shrouding Shrouded - 1 Wall
Contact Length - Post 0.120 3.05mm
Insulation Color Black
Pitch - Mating 0.100 2.54mm
Current Rating 4A
Number of Positions Loaded All
Style Board to Board or Cable
Insulation Height 0.337 8.56mm
Depth 7.21mm
Terminal Pitch 2.54mm
Orientation Vertical
Mixed Contacts NO
Contact Type Male Pin
Filter Feature NO
IEC Conformance NO
DIN Conformance NO
MIL Conformance NO
Contact Finish - Mating Tin
Fastening Type Push-Pull
Additional Feature POLARIZED
Gender Male
Number of Rows 1
Applications Automotive, General Purpose, Medical, Telecommunications
Min Operating Temperature 0°C
Max Operating Temperature 75°C
Number of Positions 28
Connector Type Header, Breakaway
Termination Solder
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
Pbfree Code yes
Series KK 42225
Packaging Bulk
Physical
Housing Material Nylon
Insulation Material Polyamide (PA), Nylon, Glass Filled
Contact Shape Square
Mounting Type Through Hole
Mount Through Hole
Contact Material Brass
Supply Chain
Factory Lead Time 10 Weeks
