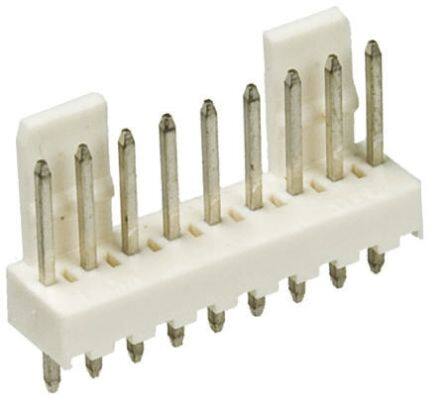

22-11-1081
RoHS
/
Package /
Category Connectors, Interconnects / Rectangular Connectors - Headers, Male Pins
Description
Headers & Wire Housings 8CKT 2.5MM WAFER W/ LOCK ASSY 504508AG
PDF
/
Buying Options
Total Price: USD $1.66
Unit Price: USD $1.659009
≥1 USD $1.659009
≥10 USD $1.565094
≥100 USD $1.476511
≥500 USD $1.392928
≥1000 USD $1.31409
Inventory: 8608
Minimum: 1
-
+
Technical Details
Supply Chain
Factory Lead Time 10 Weeks
Physical
Contact Material Brass
Contact Plating Gold
Mount Through Hole
Housing Material Nylon
Technical
Packaging Bulk
Published 2008
Pbfree Code yes
Termination Solder
ECCN Code EAR99
Connector Type Male Pin
Number of Positions 8
Max Operating Temperature 105°C
Min Operating Temperature -40°C
Color Natural
Number of Rows 1
Voltage - Rated 250V
Additional Feature POLARIZED
Fastening Type Friction
Subcategory Headers and Edge Type Connectors
Contact Finish - Mating NOT SPECIFIED
MIL Conformance NO
DIN Conformance NO
IEC Conformance NO
Filter Feature NO
Mixed Contacts NO
Option GENERAL PURPOSE
Pitch 2.5mm
Total Number of Contacts 8
Orientation Vertical
Current Rating 3A
Number of Conductors ONE
Reference Standard UL, CSA
Reliability COMMERCIAL
Number Of PCB Rows 1
Contact Length - Mating 7.493mm
PCB Contact Pattern RECTANGULAR
Mating Information MULTIPLE MATING PARTS AVAILABLE
Contact Gender Male
UL Flammability Code 94V-0
Rated Current (Signal) 3A
Contact Style SQ PIN-SKT
Contact Resistance 20mOhm
Body/Shell Style RECEPTACLE
Max Voltage Rating (DC) 250.25kV
Contact Pattern RECTANGULAR
Withdrawl Force-Min .556 N
Dimensions
Height 11.7mm
Length 19.5mm
Width 5.8mm
Compliance
RoHS Status RoHS Compliant
Lead Free Lead Free
