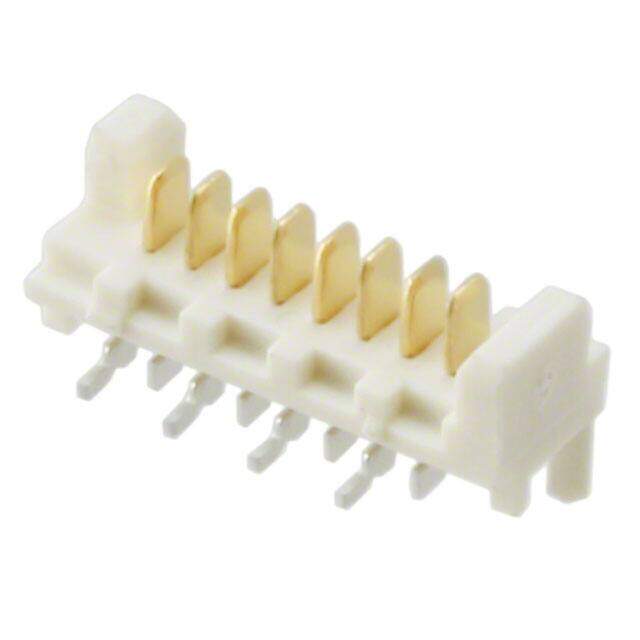

0908143808
RoHS
RoHS compliant
RoHS compliantPackage /
Category Connectors, Interconnects / Rectangular Connectors - Headers, Male Pins
Description
Conn Wire to Board HDR 8 POS 2.54mm Solder ST SMD Picoflex? Tube
PDF
/
Buying Options
Total Price: USD $1.4
Unit Price: USD $1.3992
≥1 USD $1.3992
≥10 USD $1.1924
≥100 USD $0.985336
≥500 USD $0.913
Inventory: 3316
Minimum: 1
-
+
Technical Details
Supply Chain
Factory Lead Time 31 Weeks
Physical
Contact Material Cartridge Brass
Mounting Type Surface Mount
Contact Shape Rectangular
Insulation Material Polyamide (PA), Nylon, Glass Filled
Mounting Option 1 LOCKING
Board Mounting Option PEG
Technical
Packaging Tube
Series Picoflex PF-50 90814
Feature Board Guide
Pbfree Code yes
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Termination Solder
ECCN Code EAR99
Connector Type Header
Number of Positions 8
Applications Automotive, General Purpose, Industrial, Medical
Number of Rows 1
Additional Feature LOW PROFILE, POLARIZED
Fastening Type Push-Pull
Contact Finish - Mating Palladium-Nickel
MIL Conformance NO
DIN Conformance NO
IEC Conformance NO
Filter Feature NO
Contact Type Male Blade
Mixed Contacts NO
Total Number of Contacts 8
Insulation Height 0.161 4.10mm
Style Board to Cable/Wire
Number of Positions Loaded All
Pitch - Mating 0.050 1.27mm
Insulation Color Natural
Number of Conductors ONE
Reference Standard UL
Reliability COMMERCIAL
Body Length or Diameter 0.549 inch
Shrouding Shrouded - 2 Wall
Number Of PCB Rows 2
Contact Finish - Post Tin
Contact Length - Mating 0.085 2.15mm
PCB Contact Pattern STAGGERED
Operating Temperature (Min) -40°C
UL Flammability Code 94V-0
Body Depth 0.203 inch
Rated Current (Signal) 2.4A
Mating Contact Pitch 0.05 inch
Polarization Key POLARIZING PEG
Dielectric Withstanding Voltage 750VAC V
Withdrawl Force-Min .2502 N
Dimensions
Plating Thickness 24μin
Contact Finish Thickness - Mating 24.0μin 0.61μm
Contact Finish Thickness - Post 118.1μin 3.00μm
Compliance
Material Flammability Rating UL94 V-0
RoHS Status ROHS3 Compliant
