0444281401

Molex
RoHS
RoHS RoHS compliant
Package /
Category Connectors, Interconnects / Rectangular Connectors - Headers, Male Pins

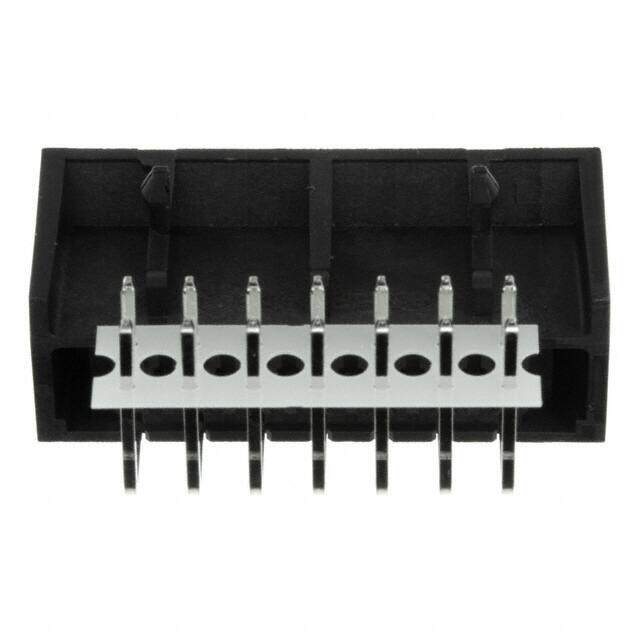

Description Conn Wire to Board HDR 14 POS 3mm Solder RA Thru-Hole Micro-Fit 3.0 BMI? Tray
PDF
/
Buying Options
Total Price: USD $4
Unit Price: USD $3.9952
≥1 USD $3.9952
≥10 USD $3.51296
≥100 USD $2.794114
≥500 USD $2.31513
Inventory: 561
Minimum: 1
-
+

Technical Details

Compliance

RoHS Status ROHS3 Compliant
Material Flammability Rating UL94 V-0

Dimensions

Contact Finish Thickness - Post 200.0μin 5.08μm
Contact Finish Thickness - Mating 200.0μin 5.08μm

Technical

Shrouding Shrouded - 4 Wall
Contact Length - Post 0.138 3.50mm
Row Spacing - Mating 0.118 (3.00mm)
Insulation Color Black
Pitch - Mating 0.118 3.00mm
Number of Positions Loaded All
Style Board to Board or Cable
Insulation Height 0.469 11.90mm
Contact Type Male Pin
Contact Finish - Mating Tin
Fastening Type Push-Pull
Number of Rows 2
Applications General Purpose, Medical, Military, Telecommunications
Number of Positions 14
Connector Type Header
Termination Solder
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
Feature Board Lock
Series Micro-Fit 3.0 BMI 44428
Packaging Tray

Physical

Insulation Material Polyamide (PA), Nylon, Glass Filled
Contact Shape Square
Mounting Type Through Hole, Right Angle
Contact Material Brass

Supply Chain

Factory Lead Time 9 Weeks
