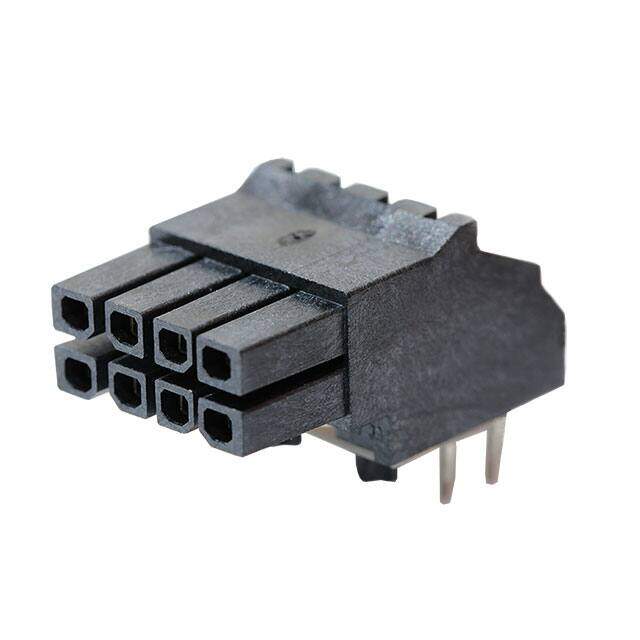

0447640801
RoHS
RoHS compliant
RoHS compliantPackage /
Category Connectors, Interconnects / Rectangular Connectors - Headers, Receptacles, Female Sockets
Description
Conn Wire to Board RCP 8 POS 3mm Solder RA Thru-Hole Micro-Fit 3.0 BMI? Tray
PDF
/
Buying Options
Total Price: USD $3.84
Unit Price: USD $3.8368
≥1 USD $3.8368
≥10 USD $3.37304
≥100 USD $2.68312
≥500 USD $2.223109
Inventory: 248
Minimum: 1
-
+
Technical Details
Supply Chain
Factory Lead Time 7 Weeks
Physical
Contact Material Phosphor Bronze
Mounting Type Through Hole, Right Angle
Contact Shape Square
Insulation Material Liquid Crystal Polymer (LCP), Glass Filled
Technical
Operating Temperature -40°C~105°C
Packaging Tray
Series Micro-Fit 3.0 BMI 44764
JESD-609 Code e3
Feature Board Guide
Pbfree Code yes
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Termination Solder
Connector Type Receptacle
Number of Positions 8
Applications General Purpose, Telecommunications
Number of Rows 2
Voltage - Rated 600VAC
Fastening Type Push-Pull
Contact Finish - Mating Tin
MIL Conformance NO
DIN Conformance NO
IEC Conformance NO
Filter Feature NO
Contact Type Female Socket
Mixed Contacts NO
Current Rating (Amps) 5A
Terminal Pitch 3mm
Insulation Height 0.402 10.20mm
Style Board to Board or Cable
Number of Positions Loaded All
Pitch - Mating 0.118 3.00mm
Insulation Color Black
Row Spacing - Mating 0.118 (3.00mm)
Contact Length - Post 0.155 3.94mm
UL Flammability Code 94V-0
Dimensions
Contact Finish Thickness - Mating 40.0μin 1.02μm
Contact Finish Thickness - Post 40.0μin 1.02μm
Compliance
Material Flammability Rating UL94 V-0
RoHS Status ROHS3 Compliant
