0428202214
RoHS
RoHS compliant
RoHS compliantPackage /
Category Connectors, Interconnects / Rectangular Connectors - Headers, Male Pins
Description

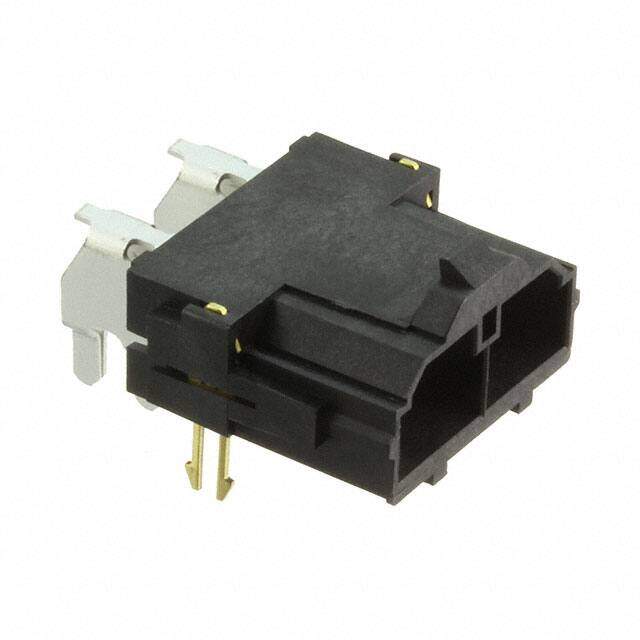

CONN HEADER R/A 2POS 10MM
PDF
/
Buying Options
Total Price: USD $5.04
Unit Price: USD $5.0424
≥1 USD $5.0424
≥10 USD $4.438553
≥100 USD $3.530648
≥500 USD $2.925358
Inventory: 2847
Minimum: 1
-
+
Technical Details
Compliance
RoHS Status ROHS3 Compliant
Material Flammability Rating UL94 V-0
Dimensions
Contact Finish Thickness - Post 100.0μin 2.54μm
Contact Finish Thickness - Mating 100.0μin 2.54μm
Technical
Contact Finish - Post Tin
Shrouding Shrouded - 4 Wall
Contact Length - Post 0.138 3.50mm
Insulation Color Black
Pitch - Mating 0.394 10.00mm
Number of Positions Loaded All
Style Board to Cable/Wire
Insulation Height 0.421 10.70mm
Contact Type Male Blade
Contact Finish - Mating Silver
Fastening Type Locking Ramp
Number of Rows 1
Applications Automotive, General Purpose, Industrial, Medical, Telecommunications
Number of Positions 2
Connector Type Header
Termination Solder
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
Pbfree Code yes
Feature Board Lock
Series Mini-Fit Sr 42820
Packaging Tube
Physical
Insulation Material Polyamide (PA46), Nylon 4/6, Glass Filled
Contact Shape Rectangular
Mounting Type Through Hole, Right Angle
Contact Material Copper Zirconium Alloy
Supply Chain
Factory Lead Time 7 Weeks
