0039288060
RoHS
RoHS compliant
RoHS compliantPackage /
Category Connectors, Interconnects / Rectangular Connectors - Headers, Male Pins
Description

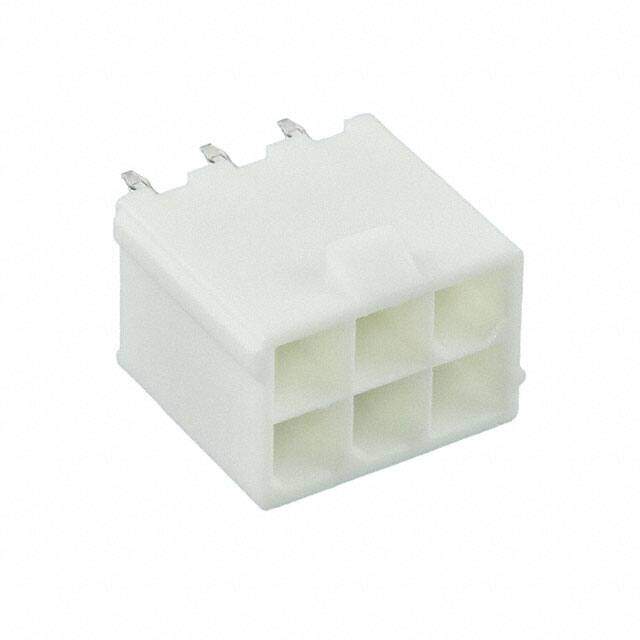

Connector Wire to Board Header 6 Position 4.2mm Solder Straight Thru-Hole Tray
PDF
/
Buying Options
Total Price: USD $1.15
Unit Price: USD $1.1528
≥1 USD $1.1528
≥10 USD $0.95304
≥100 USD $0.793848
≥500 USD $0.635105
≥1000 USD $0.555711
≥3000 USD $0.52793
Inventory: 13292
Minimum: 1
-
+
Technical Details
Technical
Number of Positions Loaded All
Pitch - Mating 0.165 4.20mm
Insulation Color Natural
Row Spacing - Mating 0.165 (4.20mm)
Contact Length - Post 0.138 3.50mm
Shrouding Shrouded - 4 Wall
UL Flammability Code 94V-0
Empty Shell NO
Style Board to Cable/Wire
Insulation Height 0.504 12.80mm
Mixed Contacts NO
Contact Type Male Pin
Filter Feature NO
IEC Conformance NO
DIN Conformance NO
MIL Conformance NO
Contact Finish - Mating Tin
Fastening Type Locking Ramp
Additional Feature POLARIZED
Number of Rows 2
Applications General Purpose, Industrial, Telecommunications
Number of Positions 6
Connector Type Header
Termination Solder
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
Pbfree Code yes
JESD-609 Code e3
Series Mini-Fit Jr 5566
Packaging Bulk
Dimensions
Contact Finish Thickness - Mating 35.4μin 0.90μm
Contact Finish Thickness - Post 35.0μin 0.90μm
Compliance
Material Flammability Rating UL94 V-0
RoHS Status ROHS3 Compliant
Physical
Insulation Material Polyamide (PA66), Nylon 6/6
Contact Shape Square
Mounting Type Through Hole
Contact Material Brass
Supply Chain
Factory Lead Time 6 Weeks
