282191-1
RoHS
RoHS compliant
RoHS compliantPackage /
Category Connectors, Interconnects / Rectangular Connectors - Housings
Description

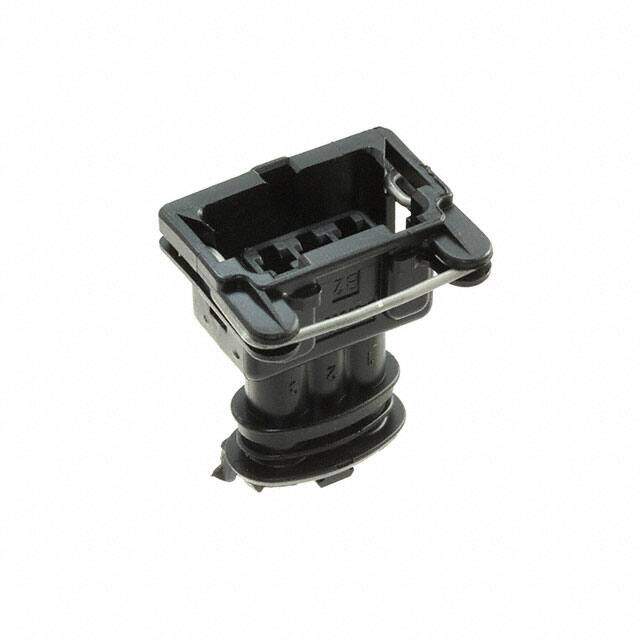

TE CONNECTIVITY 282191-1 Connector Housing, JPT Series, Receptacle, 3 Ways, 5 mm, Junior Power Timer socket contacts
PDF
/
Buying Options
Total Price: USD $1
Unit Price: USD $1.0032
≥1 USD $1.0032
≥10 USD $0.93896
≥100 USD $0.781458
≥500 USD $0.637393
≥1000 USD $0.576268
≥3000 USD $0.540311
Inventory: 3449
Minimum: 1
-
+
Technical Details
Compliance
Ratings IP54K
Lead Free Lead Free
RoHS Status RoHS Compliant
REACH SVHC No SVHC
Radiation Hardening No
Dimensions
Width 24.5mm
Length 30.4038mm
Height 38.7096mm
Technical
Serviceable Yes
Polarized Yes
Hybrid Connector No
Mating Tab Width 2.9972mm
Contact Termination Crimp
Circuit Application Signal
ELV Compliant
Note Contacts Not Included
Housing Color Black
Number of Contacts 3
Depth 38.2mm
Orientation Straight
Pitch 0.197 5.00mm
Contact Type Female Socket
Voltage - Rated DC 24V
Gender Receptacle
Number of Rows 1
Color Natural
Min Operating Temperature -30°C
Max Operating Temperature 125°C
Number of Positions 3
Connector Type Receptacle
Termination Crimp
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
Feature Splash-Proof
Series Junior Power Timer
Published 2005
Packaging Bulk
Physical
Housing Material Polyamide
Material Nylon
Number of Pins 3
Mounting Type Free Hanging (In-Line)
Mount Cable, Free Hanging
Contact Plating Tin
Supply Chain
Lifecycle Status ACTIVE (Last Updated: 3 days ago)
Factory Lead Time 15 Weeks
